Description

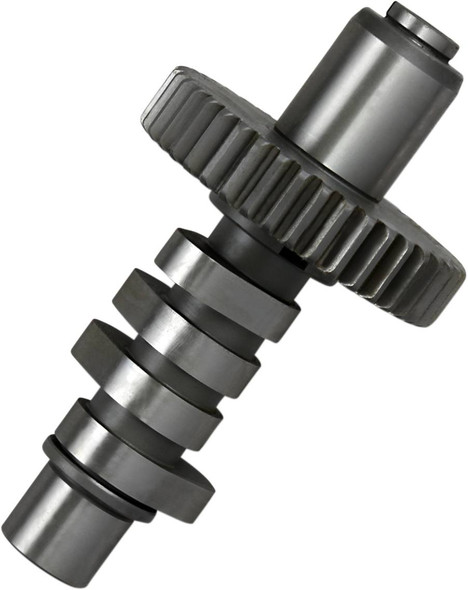

Andrews - 212350 - Low-Compression Cam - #2 Grind - Shovelhead
Features
- Designed with a combination of shorter durations and higher lifts to offer the advantages of a broad torque output through the entire rpm range
- Designed for hydraulics, but could be run with solids
- Grind #2 offers more power through the rpm range for engines with low-compression pistons; the low-compression sister to a "B" grind cam
- Made in the USA
- On late '77 and later engines, the pitch diameter on the camshaft, pinion gear and breather valve gear was changed. These components are not interchangeable with earlier style components unless replaced in sets only. Late '77 and later gear sets are identified by a circular groove machined in the outer face of the cam gear.
Specs
| Intake Lift at TDC Imperial | Shovel: 0.133'' Pan: 0.133'' |
| Application | Intake |
| Intake Open Imperial | 15° |
| Exhaust Close Imperial | 15° |
| Exhaust Lift at TDC Imperial | Shovel: 0.133'' Pan: 0.133'' |
| Grind | #2 |
| Intake Close Imperial | 35° |
| Intake Duration Imperial | 230° |
| Intake Lift Imperial | Shovel: 0.490'' Pan: 0.512 |
| Product Name | Cam |
| Exhaust Lift Imperial | Shovel: 0.490'' Pan: 0.512'' |
| Exhaust Duration Imperial | 230° |
| Riding Style | Street |
| Exhaust Open Imperial | 35° |
| Units | Each |
| Application | Exhaust |
Fitment
| 1980 | Harley-Davidson | 1200 Electra Glide FLH |
| 1979-1980 | Harley-Davidson | 1200 Fat Bob FXEF |
| 1978-1979 | Harley-Davidson | 1200 Low Rider FXS |
| 1978 | Harley-Davidson | 1200 Super Glide FX |
| 1978-1980 | Harley-Davidson | 1200 Super Glide FXE |
| 1983 | Harley-Davidson | Disc Glide FXDG |
| 1981-1982 | Harley-Davidson | Electra Glide Classic FLH |
| 1983 | Harley-Davidson | Electra Glide Classic FLHTC |
| 1978-1980 | Harley-Davidson | Electra Glide FL |
| 1978-1984 | Harley-Davidson | Electra Glide FLH |
| 1981 | Harley-Davidson | Electra Glide Heritage FLH |
| 1984 | Harley-Davidson | Electra Glide Special FLHX |
| 1980-1982 | Harley-Davidson | Electra Glide Sport FLHS |
| 1983 | Harley-Davidson | Electra Glide Standard FLHT |
| 1979-1981 | Harley-Davidson | Fat Bob FXEF |
| 1979-1982 | Harley-Davidson | Low Rider FXS |
| 1983-1984 | Harley-Davidson | Low Rider FXSB |
| 1983 | Harley-Davidson | Sport Glide FXRT |
| 1980-1982 | Harley-Davidson | Sturgis FXB |
| 1979-1984 | Harley-Davidson | Super Glide 80 FXE |
| 1982-1983 | Harley-Davidson | Super Glide II FXR |
| 1982-1983 | Harley-Davidson | Super Glide II FXRS |
| 1980-1983 | Harley-Davidson | Tour Glide Classic FLTC |
| 1980-1983 | Harley-Davidson | Tour Glide FLT |
| 1980-1984 | Harley-Davidson | Wide Glide FXWG |
