Description

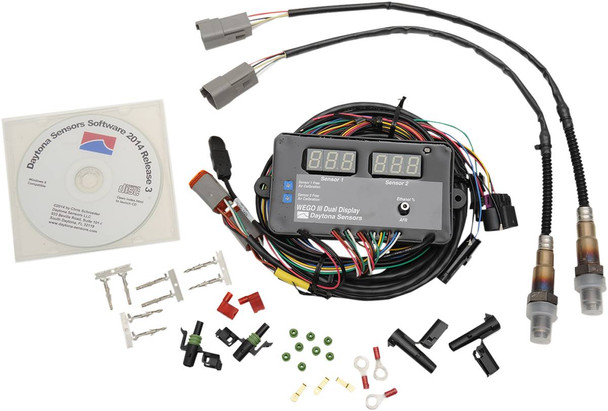

Daytona Twin Tec Llc - 112005 - WEGO III™ AFR System Sensor Kit
Features
- Sold in a system that includes WEGO III wide-band exhaust gas oxygen sensor interface, 42" harness, Bosch LSU 4.2 five-wire wide-band oxygen sensor, 18 x 1.5 mm weld nut for mounting sensor on exhaust pipe and software on CD ROM
- WEGO III data logging software runs under Windows ME/XP/Vista; software allows AFR, engine rpm and analog sensor data with user-defined scaling; data can also be exported to Excel for further analysis
- Displays AFR (air/fuel ratio) and logs more than two hours data including AFR and engine rpm; spare 0-5V analog input for sensors such as throttle position or manifold pressure
- Wide supply voltage range from 11-16V allows operation from battery on small engines and race vehicles without an alternator; current drain is approximately 1 amp
- Waterproof, ultra-bright, daylight-readable blue LED display with automatic dimming under low-light conditions
- Can be used for on-road or dyno testing; suitable for motorcycle and other small engine applications
- Highly accurate with less than +/- 0.10 AFR error over 10.3-19.5 AFR range
- Easy free-air calibration procedure corrects for sensor aging effects
- Complete fuel/air ratio metering system with built-in data logging
- 0-5V analog AFR output for interface to dyno instrumentation
- Compact size: 4" L x 2" W x .5" H
- Made in the USA
Specs
| Features | 18 mm Sensor |
| Model | WEGO III |
| Riding Style | Street |
| Type | Wide-Band O2 |
| Units | Kit |
| Color/Finish | Black |
| Style | Dual Channel |
| Product Name | Sensor Kit |
| Color/Finish | Gray |
