Description

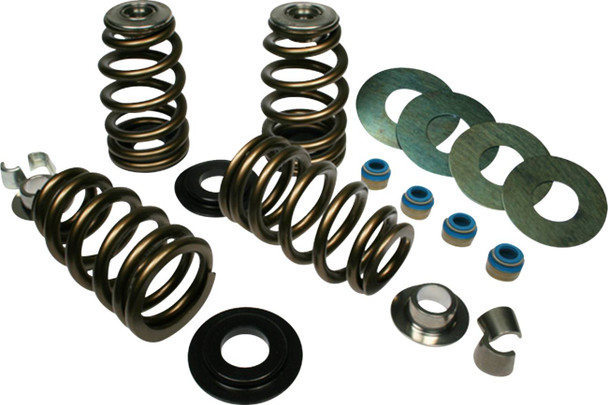

Feuling Parts - 1200 - Valve Spring Kit - High Load Beehive® with TI Retainers - Evo/Twin Cam | XL | Buell
Features
- Made from premium stress-relieved conical ovate wire with nitrided surface heat treatment, shot-peened surface enhancements and Nano Peen™ polish
- Uses a much smaller and lighter weight retainer to reduce valve weight and create quicker rev and smoother motion
- Designed to handle the highest demands of performance engines with high-lift, steep-ramped camshafts
- Allows up to 0.750" lift cams; no rocker box clearing required
- Features extremely high level of fatigue life
- Dyno proven and track tested
- Kit includes High-Load BeeHive® valve springs, lightweight 10 Titanium retainers manufactured from Ti-17 alloy and micropolished for enhanced fatigue life, machined heat-treated chromoly spring seats, seat shims, valve locks and a set of premium Viton® valve seals equipped with spring-loaded valve stem wiper system
- Made in the USA
- Seat lb/installed height:
- 170 lb at 1.935" (0.720" lift)
- 185 lb at 1.900" (0.685" lift)
- 200 lb at 1.845" (0.630" lift)
- 208 lb at 1.819" (0.604" lift)
- 215 lb at 1.800" (0.585" lift)
- 217 lb at 1.789" (0.574" lift)
- 415 lb at 1.215" open height
- Coil bind at 1.125"
- Valve springs must be installed at the correct OPEN HEIGHT, matching max lift to the open height spec of the valve springs.
- Feuling® BeeHive® valve spring kit is direct replacement with no machining or rocker box clearance required. Up to .574" lift for '84-'04 Big Twin and '86-'03 XL and up to .700" lift for '05-'17 Twin Cam. Larger camshafts require valve guide machining for seal-to-retainer clearance.
- FEULING - BEEHIVE VALVE SPRING INSTALL
- Feuling Racing & Development
Specs
Material | Steel |
Type | Valve |
Application | Exhaust |
Collar Material | Titanium |
Spring Lift | 0,750'' |
Model | High-Load Beehive |
Product Name | Spring Kit |
Riding Style | Street |
Spring Lift Imperial | 0.750'' |
Application | Intake |
Stem Diameter Imperial | 0.3125'' |
Units | Kit |
Fitment
2000-2002 | Buell | Blast 500 |
2001-2002 | Buell | M2 Cyclone Low |
1997-2002 | Buell | M2 Cyclone |
1996-1998 | Buell | S1 Lightning |
1998 | Buell | S1 White Lightning |
1995 | Buell | S2 Thunderbolt |
1995-1996 | Buell | S2T Thunderbolt |
1997-2002 | Buell | S3 Thunderbolt |
1997-2002 | Buell | S3T Thunderbolt |
1999-2002 | Buell | X1 Lightning |
2002 | Buell | X1W White Lightning |
2002 | Buell | XB9R Firebolt |
1996-2003 | Harley-Davidson | 1200 Custom XLC |
1996-2003 | Harley-Davidson | 1200 Sport XLS |
1986-1995 | Harley-Davidson | 883 Deluxe XLH |
1987-2003 | Harley-Davidson | 883 Hugger XLH |
1984 | Harley-Davidson | Disc Glide FXRDG |
1995-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV |
1992 | Harley-Davidson | Dyna Glide Custom FXDC |
1995-2001 | Harley-Davidson | Electra Glide Classic EFI FLHTCI |
1984-2004 | Harley-Davidson | Electra Glide Classic FLHTC |
1987-1993 | Harley-Davidson | Electra Glide Sport FLHS |
2003-2004 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
1985-1987, 1995-2004 | Harley-Davidson | Electra Glide Standard FLHT |
1995-2004 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
1989-1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU |
1985 | Harley-Davidson | Fat Bob FXEF |
1999 | Harley-Davidson | FXR 2 |
1999 | Harley-Davidson | FXR 3 |
2000 | Harley-Davidson | FXR 4 |
1985 | Harley-Davidson | Low Glide Custom FXRC |
1984-1985 | Harley-Davidson | Low Glide FXRS |
1987 | Harley-Davidson | Low Rider Chrome FXRC |
1990-1993 | Harley-Davidson | Low Rider Convertible FXRS-CONV |
1987-1994 | Harley-Davidson | Low Rider Custom FXLR |
2004 | Harley-Davidson | Low Rider EFI FXDL |
1993-2004 | Harley-Davidson | Low Rider FXDL |
1987-1993 | Harley-Davidson | Low Rider FXRS |
1985 | Harley-Davidson | Low Rider FXSB |
1988-1993 | Harley-Davidson | Low Rider Sport FXRS-SP |
1998-2004 | Harley-Davidson | Road Glide EFI FLTR |
1998-2002 | Harley-Davidson | Road Glide FLTR |
1998-2004 | Harley-Davidson | Road King Classic EFI FLHRC |
2004 | Harley-Davidson | Road King Custom EFI FLHRS |
2004 | Harley-Davidson | Road King Custom FLHRS |
1996-2004 | Harley-Davidson | Road King EFI FLHR |
1994-2004 | Harley-Davidson | Road King FLHR |
1995-1997 | Harley-Davidson | Softail Bad Boy FXSTSB |
1986-1999 | Harley-Davidson | Softail Custom FXSTC |
2001-2004 | Harley-Davidson | Softail Deuce EFI FXSTDI |
2000-2004 | Harley-Davidson | Softail Deuce FXSTD |
2002-2004 | Harley-Davidson | Softail Fat Boy EFI FLSTFI |
1990-2004 | Harley-Davidson | Softail Fat Boy FLSTF |
2001-2004 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI |
1987-2004 | Harley-Davidson | Softail Heritage Classic FLSTC |
1986-1990 | Harley-Davidson | Softail Heritage FLST |
1994-1996 | Harley-Davidson | Softail Heritage Special FLSTN |
2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI |
1997-2003 | Harley-Davidson | Softail Heritage Springer FLSTS |
2001-2004 | Harley-Davidson | Softail Night Train EFI FXSTBI |
1999-2004 | Harley-Davidson | Softail Night Train FXSTB |
1993 | Harley-Davidson | Softail Nostalgia FLSTN |
2001-2004 | Harley-Davidson | Softail Springer EFI FXSTSI |
1988-2004 | Harley-Davidson | Softail Springer FXSTS |
2001-2004 | Harley-Davidson | Softail Standard EFI FXSTI |
1984-1993 | Harley-Davidson | Softail Standard FXST |
1984-1993 | Harley-Davidson | Sport Glide FXRT |
1986 | Harley-Davidson | Sport Glide Grand Touring FXRD |
1986-1987 | Harley-Davidson | Sportster 1100 XLH |
1988-2003 | Harley-Davidson | Sportster 1200 XLH |
1986-2003 | Harley-Davidson | Sportster 883 XLH |
2004 | Harley-Davidson | Super Glide EFI FXDI |
1995-2004 | Harley-Davidson | Super Glide FXD |
1986-1994 | Harley-Davidson | Super Glide FXR |
2004 | Harley-Davidson | Super Glide Sport EFI FXDXI |
1999-2004 | Harley-Davidson | Super Glide Sport FXDX |
2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT |
1984-1994 | Harley-Davidson | Tour Glide Classic FLTC |
1996 | Harley-Davidson | Tour Glide Ultra Classic EFI FLTCU |
1989-1996 | Harley-Davidson | Tour Glide Ultra Classic FLTCU |
2004 | Harley-Davidson | Wide Glide EFI FXDWGI |
1993-2004 | Harley-Davidson | Wide Glide FXDWG |
1985-1986 | Harley-Davidson | Wide Glide FXWG |
