Description
Feuling Parts - 7262ST - Camchest - Race Series® - Reaper 521 - Oil Cooled - M8
Features
- Billet 7075 aluminum oil pump, which is 50% harder and stronger than the factory pump, holding tighter tolerances under temperature
- Short travel hydraulic lifters have 0.115" of total travel and will increase rpm by decreasing valve float and valve-train harmonics while maintaining a quiet engine
- Deeper scavenge kidney ports over the HP+ series for even more scavenge flow volume
- 30% more pressure gear volume over stock for M-Eight Twin-Cooled motors
- 53% more scavenge gear volume over stock for M-Eight Twin-Cooled motors
- 27% more pressure and scavenge gear volume over stock for M-Eight Oil-Cooled motors
- 42% more scavenge volume with port sizing, matched passages and holes to the engine case for M-Eight Twin-Cooled motors and M-Eight Oil-Cooled motors
- 68% more oil volume to the crankshaft and connecting rod bearing for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
- 15 -25 cooler engine temperatures for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
- 15 -30 cooler oil temperatures for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
- 10-30 more psi of oil pressure for M-Eight Twin-Cooled™ motors and M-Eight Oil-Cooled motors
- Increases oil pressure, scavenge volume and engine oil flow
- Reduces wet sumping, blowby and oily air cleaners
- Magnets in oil pump to help protect gears and pressure relief valve
- Test results show 2 hp gain and 2 ft/lb of TQ gain to the rear wheel on M-Eight
- Feuling test results show a 50% reduction of engine sump oil level

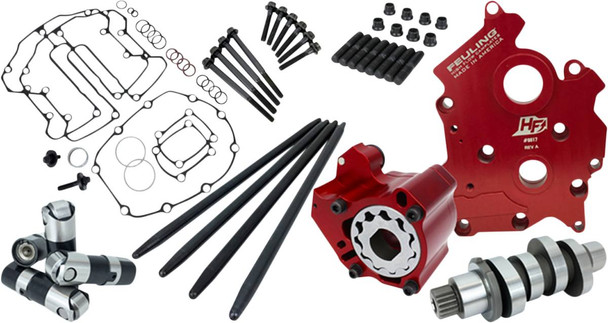

- Kit includes: Race Series® high volume oil pump, High Flow billet camplate, Reaper® Series camshaft, Race Series® short hydraulic roller lifters, one piece pushrods, Timken®/ Koyo® cam bearings, rocker arm studs/ nuts, gaskets, O-rings, ARP® cam/ crank fasteners, washers, moly paste and Loctite®
- Made in the USA
- Not for '23-'24 models with 121" VVT motor.
- Feuling Racing & Development
Specs
Grind | 521 Series |
Intake Duration Imperial | 231° |
Units | Kit |
Exhaust Duration Imperial | 243° |
Exhaust Lift Imperial | 0.521'' |
Exhaust Open Imperial | 51.5° |
Intake Lift at TDC Imperial | 0.162'' |
Model | Race Series® |
Application | Intake |
Type | Chain |
Application | Exhaust |
Exhaust Close Imperial | 11.5° |
Features | Oil Cooled |
Exhaust Lobe Centerline Imperial | 110° |
Intake Lobe Centerline Imperial | 98.5° |
Intake Open Imperial | 17° |
Intake Close Imperial | 34° |
Intake Lift Imperial | 0.518'' |
Product Name | Camchest Kit |
Exhaust Lift at TDC Imperial | 0.125'' |
Riding Style | Street |
Fitment
2018-2022 | Harley-Davidson | CVO Road Glide Custom FLTRXSE |
2017-2022 | Harley-Davidson | CVO Street Glide FLHXSE |
2017-2024 | Harley-Davidson | Electra Glide Police FLHTPI |
2021 | Harley-Davidson | Electra Glide Revival |
2019-2022 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
2017-2019 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
2019-2020 | Harley-Davidson | FXDR 114 |
2017-2024 | Harley-Davidson | Road Glide Custom FLTRX |
2017-2023 | Harley-Davidson | Road Glide Special FLTRXS |
2017-2022 | Harley-Davidson | Road King EFI FLHR |
2017-2024 | Harley-Davidson | Road King Special FLHRXS |
2018-2020 | Harley-Davidson | Softail Breakout 114 FXBRS |
2018-2019, 2023-2024 | Harley-Davidson | Softail Breakout FXBR |
2018-2020 | Harley-Davidson | Softail Deluxe FLDE |
2018-2023 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
2018-2019 | Harley-Davidson | Softail Fat Bob FXFB |
2018-2024 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
2018-2019 | Harley-Davidson | Softail Fat Boy FLFB |
2018-2024 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
2018-2021 | Harley-Davidson | Softail Heritage Classic FLHC |
2018-2020 | Harley-Davidson | Softail Low Rider FXLR |
2020-2024 | Harley-Davidson | Softail Low Rider S FXLRS |
2018-2021 | Harley-Davidson | Softail Slim FLSL |
2018-2021 | Harley-Davidson | Softail Sport Glide FLSB |
2020-2024 | Harley-Davidson | Softail Standard FXST |
2018-2024 | Harley-Davidson | Softail Street Bob FXBB |
2017-2024 | Harley-Davidson | Street Glide EFI FLHX |
2017-2023 | Harley-Davidson | Street Glide Special FLHXS |
