Description

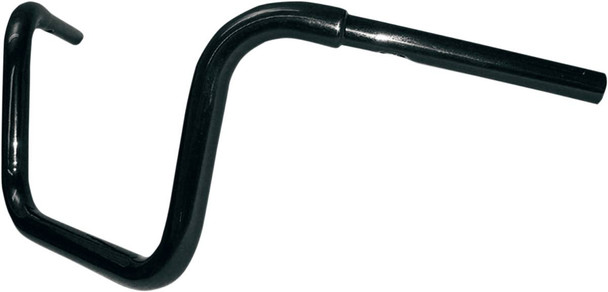

Flanders - 652-48096 - 1-1/4" Handlebar - Mini Ape - TBW - Black
Features
- Bars feature a full 1-1/4" diameter in the clamping area
- Accept most 1" grips and controls
- For use with most 99-19 Harley-Davidson models
- Made in the U.S.A.
- Bars require the use of risers that accept handlebars with a 1-1/4" diameter in clamping area (sold separately)
- Not for use with stock risers and handlebar clamp/gauge mount clamp on 883C/1200C models
- Pullback dimension is total pullback; center is before bends
- Bars are not clearanced for early-style master cylinders; fit all 08 and later OEM Harley Davidson brake master cylinders and 08 and later OEM clutch master cylinders
Specs
| Color/Finish | Black |
| Type/Bend | Ape Hanger |
| Units | Each |
| Controls Diameter Imperial | 1'' |
| Features | Knurled Center |
| Material | Steel |
| End Rise Imperial | 9'' |
| Handlebar Diameter Imperial | 1-1/4'' |
| Riding Style | Street |
| Width Imperial | 33-1/4'' |
| Product Name | Handlebar |
| Features | Notched for Throttle-By-Wire |
| Pullback/Sweep Imperial | 10'' |
| Base Color | Black |
| Center Width Imperial | 7-3/4'' |
| Clamping Diameter Imperial | 1-1/4'' |
| Features | Pre-Drilled |
| Type/Bend | Mini |
