Description

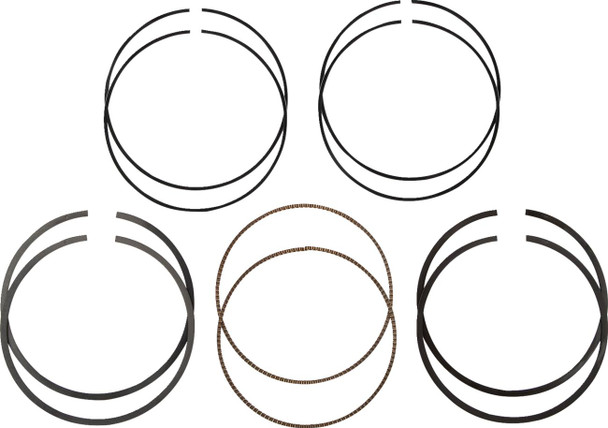

Hastings - 2C523213 - Piston Rings - 114" Motor - 4.000" +.005" - M8
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top compression rings are Barrel Face
- Coated using PVD (Physical Vapor Deposition) process
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second compression rings are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil control rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons.
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
| Displacement | 114'' |
| Units | Set |
| Piston Size Imperial | +0.005'' |
| Riding Style | Street |
| Bore Size Imperial | 4.000'' |
| Type | Replacement |
| Product Name | Piston Ring Set |
Fitment
| 2019-2020 | Harley-Davidson | CVO Electra Glide Ultra Limited FLHTKSE |
| 2018-2019, 2021 | Harley-Davidson | CVO Street Glide FLHXSE |
| 2021 | Harley-Davidson | Electra Glide Revival |
| 2019, 2021, 2024 | Harley-Davidson | Electra Glide Ultra Limited FLHTK |
| 2019 | Harley-Davidson | Electra Glide Ultra Limited Low FLHTKL |
| 2019-2021 | Harley-Davidson | Freewheeler FLRT |
| 2020 | Harley-Davidson | FXDR 114 |
| 2020-2021, 2024 | Harley-Davidson | Road Glide Limited FLTRK |
| 2019-2020 | Harley-Davidson | Road Glide Special FLTRXS |
| 2019-2021 | Harley-Davidson | Road King Special FLHRXS |
| 2018, 2020 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2019-2021 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018-2021 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2018-2021, 2024 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2020 | Harley-Davidson | Softail Low Rider S FXLRS |
| 2022-2023 | Harley-Davidson | Softail Street Bob FXBB |
| 2019-2021 | Harley-Davidson | Street Glide Special FLHXS |
| 2019-2021 | Harley-Davidson | Tri Glide Ultra Classic FLHTCUTG |
