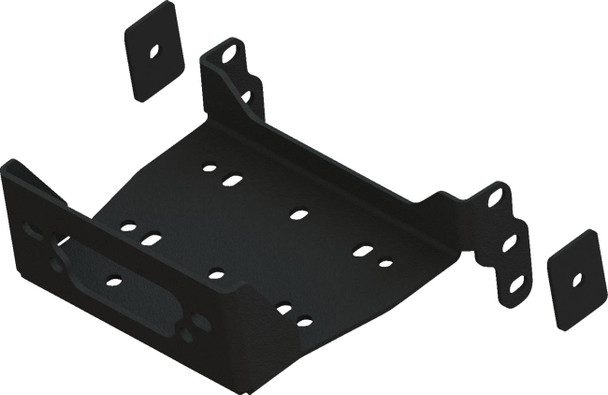

Kfi Products - 45051084 - Winch Mount - Yamaha

Kfi Products - 45051084 - Winch Mount - Yamaha

Features

• Metal bead blasted and powder coated for best possible finish prep and durability
• Very easy to install
• Complete installation instructions and mounting hardware included
• 100% made in USA
• Roller fairlead and winch not included.
• Designed to work with the following winches:
• KFI on VIKING / Viking VI (Bull / Longhorn): ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / SE25 / SE35 / SE45-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45w-R2 or SE45w-R2 WIDE winches)
• KFI on WOLVERINE: ST17 / A2000 / A2500-R2 / A3000 / SE25 / SE35 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w (will NOT work with U45-R2, U45w-R2, SE45-R2 or SE45w-R2 winches)
• KFI on WOLVERINE X2 and X4: ST17 / A2000 / A2500-R2 / A3000 / U45-R2 / U45w-R2 / SE25 / SE35 / SE45-R2 / SE45w-R2 / AM-25 / AM-35 / AS-25 / AS-35 / AS-50 / AS-50w
• WARN: VRX 25 / VRX 25-S / VRX 35 / VRX 35-S
• WARN on WOLVERINE X2 and X4: AXON 35 / AXON 35-S / AXON 45RC
• WARN: A2000 / A2500 / U2500 / 1.5ci / 2.5ci / 2.5ce / 3.0ci / 3.0ce / 3.0s / RT15 / RT25 / RT30 / XT15 / XT25 / XT30
• WARN: RT40 / XT40 (require the drilling of two holes)
• WARN: Vantage 2000-3000 lb
• WARN: Vantage 4000lb (requires the drilling of two holes)
• WARN: ProVantage 2500-3500 lb
• WARN: ProVantage 4500lbs (requires the drilling of two holes)
• RAMSEY: ATV2500 / ATV3000
• SUPERWINCH: Terra25 / Terra35 / Terra 2500 (SR) / Terra 3500 (SR) / A3500 / LT2500 / LT3000 / LT4000 (SR) / LT4000ATV
• SUPERWINCH: LT2000 / UT3000 / Terra 45 / Terra 4500 (SR) / LT4000UTV (require drilling of one-two holes)
• MILE MARKER: PE2.5 / PE 3.5 / VMX2.5 / PE2000 / PE3000 / PE2500 / PE3500 (2-hole mounted winches will require the drilling of one hole)
• CYCLE COUNTRY: Work Power 1500 and 2500 / Powermax 2500 and 3500
• BADLAND: 2-hole winches require drilling of holes
• BADLAND: standard winches
• BADLAND: wide winches require drilling of two holes
• CHAMPION: 2-hole winches, standard winches
• CHAMPION: WIDE winches require drilling of two holes
• KEEPER CORP. TRAKKER: KT2500 / KT3000 / KT2500C / KT3000C
• KEEPER CORP. TRAKKER: KT4000 / KT4000C require the drilling of two holes
• KEEPER CORP. TRAKKER: KT2000 requires the drilling of one holes and roller fairlead with a 4.875" bolt pattern
• SMITTYBILT: XRC 2.0 requires drilling of one hole and roller fairlead with a 4.875" bolt pattern
• SMITTYBILT: XRC 3.0 / XRC 4.0
• XGEAR: X3000 / X4000 4-hole standard (3.00" x 4.875" bolt pattern)
• VENOM: 2000 / 2500 / 3000 / 3500 / 4000 / 4500 / 5000 (hardcore series) with 3.00" x 4.875" or 3.00" x 6.600" bolt pattern mount-up
• Traveller: 1078088 / 1078302 require roller fairlead with a 4.875" bolt pattern
• Possibly many others with standard mounting pattern of 4-hole 3.00" x 4.875" bolt pattern with rollers that are 4.875" bolt pattern, 4-hole wide 3.00" x 6.60" bolt pattern, or 2-hole 3.10” with rollers that are 4.875” bolt pattern
