Description

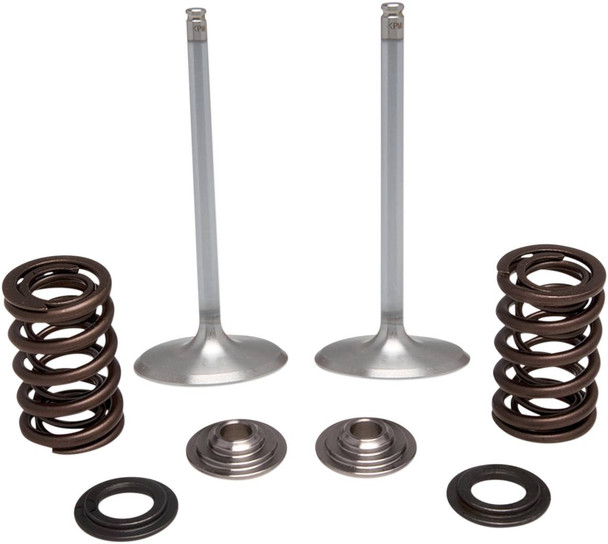

Kibblewhite - 09263154 - Valve and Spring Kit - 0.415" Lift - Kawasaki KX250F '17-'19
Features
- Extends the life of the valvetrain and intake components by as much as 4x over the OEM titanium parts
- Includes forged one-piece stainless steel intake valves, wound chrome-silicon heat-treated wire valve springs, ultra-light titanium retainers and hardened steel bases
- Components are created using Finite Element Analysis (F.E.A.) software, as well as proprietary camshaft analysis and spring design software
- Specifically designed and engineered for each application
- Made in the USA
Specs
| Head Diameter Imperial | 1.220'' |
| Product Name | Valve and Spring Kit |
| Spring Open Pressure | 181 lb |
| Spring Seat Pressure | 65 lb |
| Stem Diameter Imperial | 0.1764'' |
| Units | Kit |
| Head Diameter Metric | 31.00 mm |
| Spring Lift Imperial | 0.415'' |
| Collar Material | Titanium |
| Spring Lift | 0,415'' |
| Length Imperial | 3.460'' |
| Stem Diameter Metric | 4.50 mm |
| Type | Conversion |
| Riding Style | Off-Road |
| Application | Intake |
| Tulip Angle Imperial | 20° |
| Material | White Diamond® Stainless |
| Valve Seat Height Imperial | 1.315'' |
Fitment
| 2017-2019 | Kawasaki | KX250F |
