Description

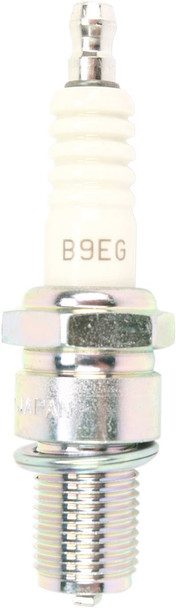

Ngk Spark Plugs - B9EG - Spark Plug - B9EG
Features
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Ground Electrode Configuration | Single |
| Heat Range | 9 |
| Type | Non-Resistor |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Spark Gap Metric | 0.6 mm |
| Ground Electrode Shape | Standard |
| Model | B9EG |
| Spark Gap Imperial | 0.025'' |
| Center Electrode Projection | Non-Projected |
| Riding Style | Off-Road |
| Terminal Configuration | Removable Nut |
| Units | Each |
| Hex Size Metric | 20.6 mm |
| Product Name | Spark Plug |
| Spark Gap | 0,6 mm (0,025'') |
| Style | Standard |
| Electrical Resistance | - |
| Riding Style | Street |
| Thread Reach Metric | 19.1 mm |
Fitment
| 1987-1988 | KTM | 125 MX |
| 1980-1981 | Yamaha | IT125 |
| 1977-1979 | Bultaco | Pursang 370 |
| 1971-1974, 1977-1979 | Bultaco | Pursang 250 |
| 1989-1998 | Cagiva | Elefant |
| 1980-1981, 1991-1994, 2003-2015 | Yamaha | YZ 490 |
| 1971-1983 | Bultaco | Pursang 125 |
| 1975-1976, 1984-1986 | Yamaha | IT 250 |
| 1972-1977 | Bultaco | Astro 250 |
| 1972-1977 | Bultaco | Astro 360 |
| 1971-1976 | Bultaco | Pursang 175 |
| 1982-1985 | Honda | CM125 |
| 1979-1980 | KTM | KTM 420 |
| 1971-1974 | Bultaco | Pursang 360 |
| 1997 | Gas Gas | Enducross 125 |
| 1985-1993 | Kawasaki | KX60 |
| 1998-2001 | Husqvarna | WRE 125 |
| 1985 | KTM | 250 GS Enduro Sport |
| 1985-1991 | Kawasaki | KX80 |
| 1989-1991 | Kawasaki | KX80 Big Wheel |
| 1982-1990 | Yamaha | YZ490 |
| 1988 | Kawasaki | KX250 |
| 1984-1985 | Yamaha | YZ80 |
| 1977-1983 | Yamaha | IT175 |
| 1977-1983 | Yamaha | IT250 |
| 1982-1983 | Yamaha | YZ250 |
| 1980-1981 | Kawasaki | KX420 |
| 1980 | Yamaha | YZ125 |
