Description

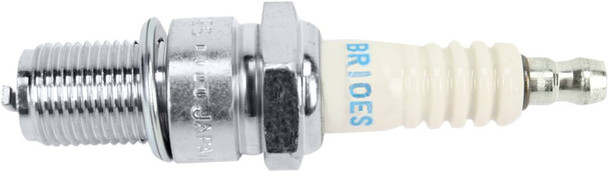

Ngk Spark Plugs - BR10ES - Spark Plug - BR10ES
Features
- Pure alumina silicate ceramic insulator, provides superior strength and better heat transfer
- Triple seals prevent leakage
- Corrugated ribs prevent flashover
- Copper core aids in heat removal
Specs
| Electrical Resistance | 5k Ohms |
| Ground Electrode Configuration | Single |
| Terminal Configuration | Removable Nut |
| Units | Each |
| Product Name | Spark Plug |
| Riding Style | Snow |
| Spark Gap Metric | 0.8 mm |
| Style | Standard |
| Thread Reach Metric | 19.1 mm |
| Riding Style | Off-Road |
| Ground Electrode Shape | Standard |
| Heat Range | 10 |
| Model | BR10ES |
| Spark Gap | 0,8 mm (0,031'') |
| Center Electrode Type | Standard |
| Electrode Tip Material | Nickel Alloy |
| Type | Resistor |
| Center Electrode Projection | Non-Projected |
| Hex Size Metric | 20.6 mm |
| Spark Gap Imperial | 0.031'' |
Fitment
| 2006 | Gas Gas | MC 65 |
| 1985-2006 | Ski-Doo | Formula III 600 |
| 1986 | Arctic Cat | Cheetah 530 L/C |
| 1993-2002 | Ski-Doo | Mach 1 670 |
| 1994-1997 | Ski-Doo | Mach Z 779 LT |
| 1994-1997 | Ski-Doo | Mach Z 779 |
| 2002-2009, 2012 | Suzuki | RM85 |
| 2003-2004 | Suzuki | RM85L |
| 2000-2001 | Suzuki | RM80 |
| 2010-2011, 2013 | Suzuki | RM 85 |
