Description

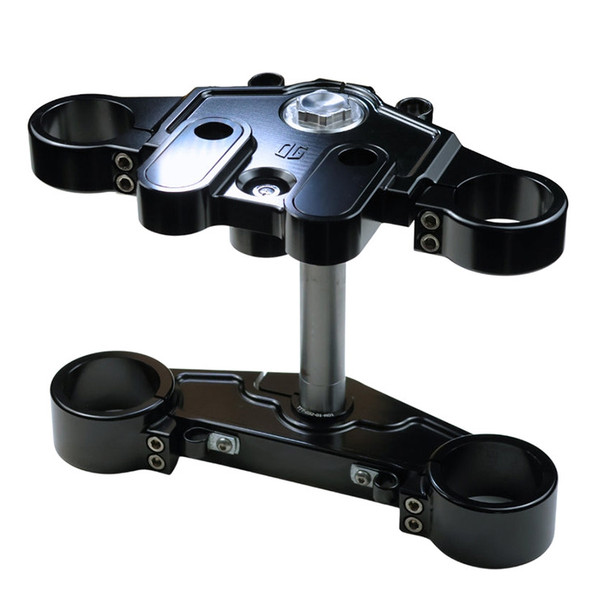

Original Garage - Triple Trees kit fits '23-Up Touring CVO Models
The OG 2023-Up Touring CVO Triple Trees Kit by Original Garage Moto is a high-performance front-end upgrade for bagger-style Harley-Davidson Touring models. Engineered to maximize strength and rigidity, it features taller fork tube clamping sections and a thicker cross-section compared to stock triple trees. The kit allows precise riser positioning with three mounting options: Stock, +1", and +2" pullback toward the rider (+1” Adapters sold separately). Additional features include a pocketed key lock, wire, and brake line management clamps, all designed for a clean, factory-style installation. Available in all OG anodized colors, including chrome finishes.
Features:
-
Precision CNC-machined 6061 T6 aluminum
- Stem axle and nut machined from 4140 Chromoly steel for superior strength
- Designed to match OEM rake angle and triple tree offset for easy installation and optimal performance
- Available in anodized and chrome finishes
- Machined OG logo
- Compatible with standard FL bushings
- Includes stainless steel hardware
- Includes two wire management clamps (one on each side)
- Includes two brake line management clamps
- Supplied with lock and key to retain fork lock functionality
- Innovative reversible risers mounting block allows three riser positions: Stock, +1", or +2" pullback toward the rider (+1” Adapters are sold separately)
Note:
- *Risers bushings are required for this kit and sold separately
Fitment:
- Fits all 2023 to present CVO & CVO ST models equipped with an inverted front-end
- Fits with Ohlins Inverted Fork Legs kit (FGRT 307)
- Fits Screamin’ Eagle / Öhlins Inverted Fork Legs Part Number: 45400392 & 45400393
- Does not fit Street Glide models due to fairing mount locations
