Description

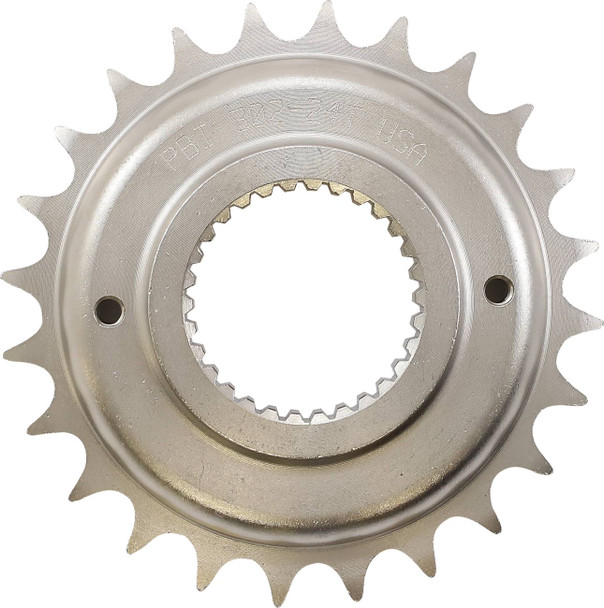

Pbi - 302-24 - Offset Transmission Sprocket - 24 Tooth - Harley-Davidson/Buell
Features
- CNC-machined from a premium nickel, chromoly steel (8620), case-hardened and finished with an electroless nickel plating for corrosion/wear resistance and lubricity
- Sprockets are drilled and tapped to accommodate late-model lock plate, PART #DS-360182, available separately
- Offset measurement is taken from the face that rests against the mainshaft bearing to the inside of the teeth for "Total Offset" description
- For use with .530 pitch chain
- Made in the U.S.A.
Specs
| Chain Size | 530 |
| Units | Each |
| Offset Imperial | 0.750'' |
| Tooth Count | 24 |
| Material | Steel |
| Type | Mainshaft |
| Color/Finish | Nickel |
| Riding Style | Street |
| Product Name | Sprocket |
Fitment
| 2011-2013 | Harley-Davidson | Blackline FXS |
| 2013-2017 | Harley-Davidson | Breakout FXSB |
| 2013-2014 | Harley-Davidson | CVO Breakout FXSBSE |
| 2009 | Harley-Davidson | CVO Fat Bob FXDFSE |
| 2010 | Harley-Davidson | CVO Fat Bob FXDFSE2 |
| 2016-2017 | Harley-Davidson | CVO Pro Street Breakout FXSE |
| 2010 | Harley-Davidson | CVO Softail Convertible FLSTSE |
| 2011 | Harley-Davidson | CVO Softail Convertible FLSTSE2 |
| 2012 | Harley-Davidson | CVO Softail Convertible FLSTSE3 |
| 2014-2015 | Harley-Davidson | CVO Softail Deluxe FLSTNSE |
| 2009 | Harley-Davidson | CVO Softail Springer FXSTSSE3 |
| 2007 | Harley-Davidson | Electra Glide Classic EFI FLHTCI |
| 2007 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2007 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
| 2007 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
| 2008-2017 | Harley-Davidson | Fat Bob FXDF |
| 2009-2017 | Harley-Davidson | Fat Boy Lo FLSTFB |
| 2016-2017 | Harley-Davidson | Fat Boy S FLSTFBS |
| 2007-2009, 2014-2017 | Harley-Davidson | Low Rider EFI FXDL |
| 2016-2017 | Harley-Davidson | Low Rider S FXDLS |
| 2007 | Harley-Davidson | Road Glide EFI FLTR |
| 2007 | Harley-Davidson | Road King Classic EFI FLHRC |
| 2007 | Harley-Davidson | Road King Custom EFI FLHRS |
| 2007 | Harley-Davidson | Road King EFI FLHR |
| 2007 | Harley-Davidson | Screamin' Eagle Dyna FXDSE |
| 2008 | Harley-Davidson | Screamin' Eagle Dyna FXDSE2 |
| 2007 | Harley-Davidson | Screamin' Eagle Electra Glide Ultra Classic FLHTCUSE2 |
| 2007 | Harley-Davidson | Screamin' Eagle Road King FLHRSE3 |
| 2007 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE |
| 2008 | Harley-Davidson | Screamin' Eagle Softail Springer FXSTSSE2 |
| 2018 | Harley-Davidson | Softail Breakout 114 FXBRS |
| 2018 | Harley-Davidson | Softail Breakout FXBR |
| 2008-2011 | Harley-Davidson | Softail Cross Bones FLSTSB |
| 2007-2010 | Harley-Davidson | Softail Custom EFI FXSTC |
| 2007-2017 | Harley-Davidson | Softail Deluxe EFI FLSTNI |
| 2018 | Harley-Davidson | Softail Deluxe FLDE |
| 2007 | Harley-Davidson | Softail Deuce EFI FXSTDI |
| 2018 | Harley-Davidson | Softail Fat Bob 114 FXFBS |
| 2018 | Harley-Davidson | Softail Fat Bob FXFB |
| 2018 | Harley-Davidson | Softail Fat Boy 114 FLFBS |
| 2007-2017 | Harley-Davidson | Softail Fat Boy EFI FLSTFI |
| 2018 | Harley-Davidson | Softail Fat Boy FLFB |
| 2018 | Harley-Davidson | Softail Heritage Classic 114 FLHCS |
| 2007-2017 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI |
| 2018 | Harley-Davidson | Softail Heritage Classic FLHC |
| 2018 | Harley-Davidson | Softail Low Rider FXLR |
| 2007-2009 | Harley-Davidson | Softail Night Train EFI FXSTBI |
| 2007-2011 | Harley-Davidson | Softail Rocker C FXCWC |
| 2007-2010 | Harley-Davidson | Softail Rocker FXCW |
| 2012-2017 | Harley-Davidson | Softail Slim FLS |
| 2018 | Harley-Davidson | Softail Slim FLSL |
| 2016-2017 | Harley-Davidson | Softail Slim S FLSS |
| 2018 | Harley-Davidson | Softail Sport Glide FLSB |
| 2007 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI |
| 2007-2012 | Harley-Davidson | Softail Standard EFI FXSTI |
| 2018 | Harley-Davidson | Softail Street Bob FXBB |
| 2006-2017 | Harley-Davidson | Street Bob FXDB |
| 2007 | Harley-Davidson | Street Glide EFI FLHX |
| 2006-2014 | Harley-Davidson | Super Glide Custom EFI FXDCI |
| 2006-2010 | Harley-Davidson | Super Glide EFI FXDI |
| 2006 | Harley-Davidson | Super Glide FXD |
| 2006 | Harley-Davidson | Super Glide FXD35 |
| 2012-2016 | Harley-Davidson | Switchback FLD |
| 2006-2008, 2010-2017 | Harley-Davidson | Wide Glide EFI FXDWGI |
| 2006 | Harley-Davidson | Wide Glide FXDWG |
