Description

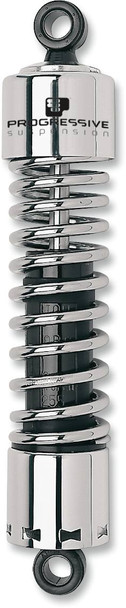

Progressive Suspension - 412-4063C - 412 Series Shock - 11.5" - Standard - Chrome
Features
- Designed specifically for Harley models
- The 412's simple, durable design makes them a cost effective improvement to your motorcycle's suspension performance
- A five position cam style spring load preload adjuster lets you easily dial in your ride
- Some or all shocks listed are approved for road use. Refer to most recent certificate for current listing
- There are multiple style options available, like full show-chrome or black covers; or either chrome or black springs and end caps
- Made in the U.S.A
- All shocks are measured center-of-eyelet to center-of-eyelet.
- When installing shocks on '86-'15 XL models, it may be necessary to modify or space the chain/belt guard to allow proper clearance.
- A shock which is slightly longer than stock may alter the head angle slightly and provide somewhat quicker steering.
- A shock which is slightly shorter than stock may alter the head angle slightly and provide somewhat slower steering.
- Heavy Duty Applications are recommended for bikes that are operated at or near the manufacturer's maximum load rating over 50% of the time.
- Before purchasing or attempting to install shocks that are different than the OEM length, confirm that your wheel travel can be altered without causing clearance issues, such as swingarm/axle to exhaust contact as well as chain/belt guard or tire contact.
- Progressive Suspension Since 1982
Specs
Duty | Standard |
Mounting Position | Rear |
Type | Coilover Monotube |
Progressive Spring Rate Metric | 1.60 kg/mm - 2.30 kg/mm |
Extended Length Imperial | 11.50'' |
Material | Steel |
Progressive Spring Rate Imperial | 90.00 lb/in - 130.00 lb/in |
Color/Finish | Chrome |
Damping Method | Gas Charged |
Reservoir Location | Internal |
Model | 412 Series without Covers |
Product Name | Shock Absorber |
Units | Pair |
Riding Style | Street |
Adjustment Style | Automatic |
Spring Type | Single Progressive Rate |
Fitment
2004-2019 | Harley-Davidson | 1200 Custom EFI XLC |
2004-2006 | Harley-Davidson | 1200 Custom XLC |
2006-2011 | Harley-Davidson | 1200 Low EFI XLL |
2006 | Harley-Davidson | 1200 Low XLL |
2007-2012 | Harley-Davidson | 1200 Nightster XLN |
2006-2008 | Harley-Davidson | 1200 Roadster EFI XLR |
2016-2020 | Harley-Davidson | 1200 Roadster XLCX |
2004-2006 | Harley-Davidson | 1200 Roadster XLR |
2011-2017 | Harley-Davidson | 1200 XLCP |
2004-2009 | Harley-Davidson | 883 Custom EFI XLC |
2004-2006 | Harley-Davidson | 883 Custom XLC |
2007-2009 | Harley-Davidson | 883 EFI XL |
2006-2010 | Harley-Davidson | 883 Low EFI XLL |
2005-2006 | Harley-Davidson | 883 Low XLL |
2005-2007 | Harley-Davidson | 883 Roadster EFI XLR |
2005-2007 | Harley-Davidson | 883 Roadster XLR |
2011-2019 | Harley-Davidson | 883 SuperLow XLL |
2004-2006 | Harley-Davidson | 883 XL |
2018-2019 | Harley-Davidson | Forty-Eight Special XLXS |
2010-2022 | Harley-Davidson | Forty-Eight XLX |
2018-2021 | Harley-Davidson | Iron 1200 XLNS |
2009-2022 | Harley-Davidson | Iron 883 XLN |
2012-2016 | Harley-Davidson | Seventy-Two XLV |
2009-2012 | Harley-Davidson | Sportster 1200 X XR |
2007 | Harley-Davidson | Sportster 1200 XL 50 |
2009-2012 | Harley-Davidson | Sportster 1200 XR |
2014-2017 | Harley-Davidson | SuperLow 1200 XLT |
