Description

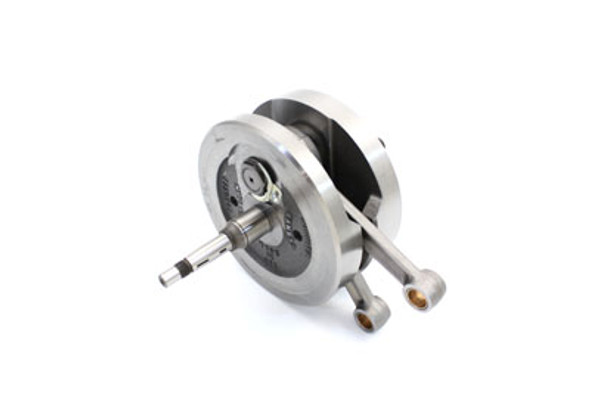

V-Twin - 10-1045 - V-Twin Stock 80 inch Flywheel Assembly
Description
4-1/2" stroke 80" flywheel assembly is shipped assembled and trued with shafts. Features replaceable pinion and sprocket shafts.
This assembly features a late type sprocket shaft, early style pinion shaft, a thick & narrow sprocket side flywheel and replaceable pinion & sprockt shafts. Required to use with 1987-up type pinion shaft bearing and retaining ring. Can also be used on 1973-1981 Big Twin mdoels when converting to 80 cubic inches.
Fits:
- FL 1973-1982
- FX 1973-1982
Additional Information
| OEM No. | 23906-78B |
| UOM | 1 - EA |
| Manufacturer | Motorshop |
| Origin | USA |
| 2025 Catalog Pages | 482 |
| Replacement Items | 10-0174 - Connecting Rod Assembly 17-0927 - Crank Pin Nut Lock Plate 17-0913 - Sprocket and Pinion Shaft Lock Plate |
| Tech Note | Assembled with #10-1602 Sifton 4.250" Stroke Flywheel Set. Required to use with #10-1274 Engine Case Right Bearing Assembly White and Green. Required to use with #12-0946 Right Crankcase Bearing Retainer Ring. |
