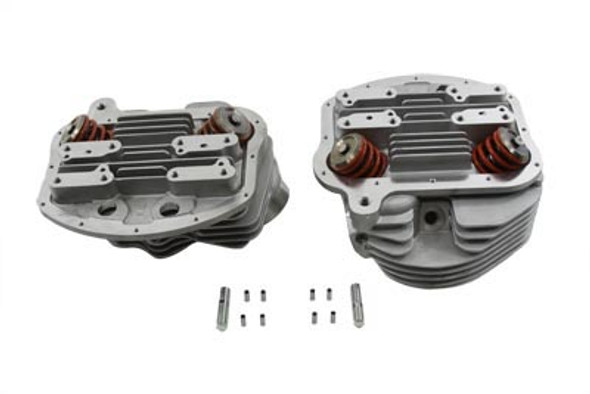

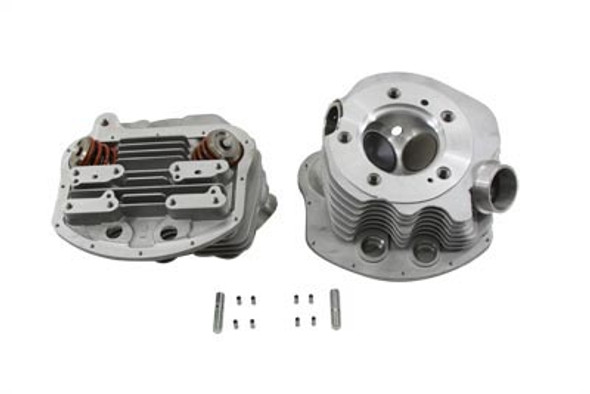

V-Twin - 10-1066 - Panhead Cylinder Heads Full Assembly
Description
V-Twin Motor Shop Ready Panheads come fully assembled and ready to install.
Heads feature original contour castings with the added detail of stock intake valves and exhaust port areas. Panheads are assembled with cast iron guides, valve stem seals, oilers and nitrated valves, (Panhead exhaust/Shovelhead intake) in combination with a complete spring and collar set. Matched rocker arm assemblies are installed with heat treated studs & nuts. Carburetor and manifold not inclided. Order original o-ring type intake manifold separately. Panhead cylinder heads feature o-ring style intake. For use with stock Panhead cams only. Max lift is .425. *NOTE: Requires to use with 2" stud.
Fits:
- FL 1955-1962
Additional Information
| UOM | 1 - SET |
| Manufacturer | Motorshop |
| Origin | Imported |
| 2025 Catalog Pages | 508 |
| Replacement Items | 10-1957 - Panhead Cylinder Head Set with Valves 11-0527 - Rocker Arm Assembly Rear Intake Front Exhaust 11-0526 - Rocker Arm Assembly Rear Exhaust Front Intake 11-0530 - Intake Valve Oiler |
| Tech Note | Required to use with #12-2128 Panhead Rocker Arm Stud Set |
