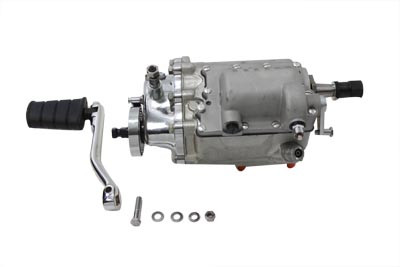

V-Twin - 17-0035 - Replica 4-Speed Jockey Transmission
Description
Replica 4-speed transmission is fully assembled.
Replica 4-speed transmission is jockey type and includes original cast case with early style main drive gear, 44 rollers and 2:1 ratio speedometer drive gear, internal parts, original style aluminum kicker cover and components, clutch rod, throwout bearing, ratchet top with natural finish with chrome dust cover, 1 piece chrome kick arm, mount studs, hub nut, seal and key. Transmission comes fully assembled and has a 3.00 ratio, FL style. This transmission is for kick starter only. No The roller bearings are caged in the countershaft gear, but not in the main drive gear. *NOTE: Manufacturer's Statement of Origin required, Bill of Sale only. *NOTE: This handshift transmission shifts 1-back and 3-forward. Transmission accepts 2:1 ration speedometer. *NOTE: All transmissions are fitted with a 22 tooth countershaft sprocket (V-Twin #19-0081). Various sizes available separately; 20, 26mm tooth.
Fits:
- UL 1937-1948
- EL 1936-1940
- FL 1941-1951
Additional Information
| UOM | 1 - EA |
| Manufacturer | Motorshop |
| Origin | USA |
| 2025 Catalog Pages | 528 |
| Replacement Items | 17-2525 - 4-Speed FL Transmission Assembly 22-1042 - Chrome Kick Starter Kit 18-3203 - Clutch Wafer Throw Out Bearing Kit 17-0754 - 4-Speed Jockey Top Assembly |
