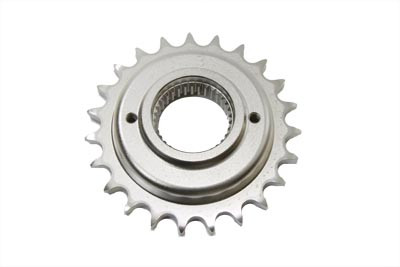

V-Twin - 19-0488 - Transmission Sprocket 23 Tooth
Description
23 tooth front transmission sprocket with a .500" offset and 2 holes. For 5 speed models.
Allows the installation of a 180 tire, without transmission offset. .900 offset is the maximum offset without any modification to the stock inner primary.
Fits:
- Custom application for chain drive conversion
- XLH 1991-UP
Additional Information
| UOM | 1 - EA |
| Manufacturer | York |
| Origin | Imported |
| Size | 23 tooth |
| 2025 Catalog Pages | 210 |
| Tech Note | .500" offset is measured from the back side of the teeth to the back side of the sprocket excluding the flange. .940" offset is measured from the center line of the teeth to the top of the flange on the back side of the sprocket. Suggested to use with #20-0217 Pulley Indexing Flange Nut. |
