V-Twin - 23-9222 - Front Brake Backing Plate Kit Right Side Chrome
Description

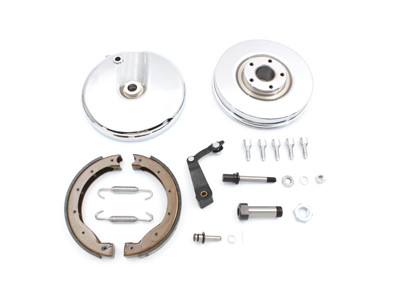

Kit includes brake shoes, springs, chrome backing plate, chrome drum, axle sleeve, nuts, cam with leverm and mount stud for right side brake.
NOTE: Pivot stud hole is oversize to allow 7/16" stud with locking washer, locking face toward backing plate, to be "set" when adjusting brake shoes.
Fits:
- FL 1969-1971
Additional Information
| UOM | 1 - KIT |
| Finish | Chrome |
| Location | Front |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 595 |
| Replacement Items | 23-2213 - Front Brake Drum Chrome 44-0302 - Front Axle Sleeve 23-9231 - Chrome Front Brake Backing Plate Right Side 24-0158 - Front Brake Operating Lever Right Side |
| Tech Note | Suggested to use with #48-0835 Facotry Service Manual for 1958-1969 FL. Suggested to use wtih #24-0127 Backing Plate Pivot Stud with Washer. Suggested to use wtih #24-0128 Backing Plate Locating Washer for Pivot Stud. |
