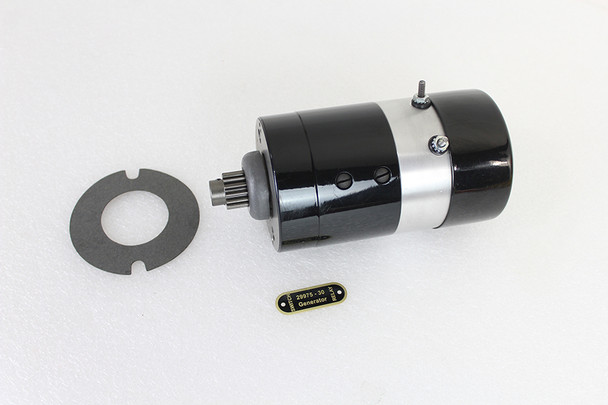

V-Twin - 32-0215 - Black 32E 6 Volt Generator Assembly Overhead Valve
Description
Generator is complete with: oil deflector, armature, gear kit, 3-brush set, field coil set, black generator body and aluminum end housing.
Generator is an accurate reproduction of the original 6 volt 3-brush generator. Replica generator is tested and assembled with all parts brand new. Includes the correct 14 tooth gear kit and pin installed for the years listed, as well as the black end cover. Generator is drilled and tapped to accept 1/4" X 24 thread OE style screws. *NOTE: Order mount screws, mount strap and shim separately for each application. *NOTE: 32E generator operation ranges from 1500-4000 RPM. Cut out relay cuts in around 1500 RPM, meaning relay closes to charge battery. For gear installation, use a solid generator gear pin, available separately.
Fits:
- FL 1941-1957
- EL 1936-1952
Additional Information
| OEM No. | 29975-30 |
| UOM | 1 - EA |
| Manufacturer | Volt Tech |
| Origin | Imported |
| 2025 Catalog Pages | 694 |
| Replacement Items | 32-0216 - Generator 3-Brush Oil Deflector 32-0831 - 32E Generator Left Frame End 32-0165 - Generator Body 32-0211 - 3-Brush Generator Brush Holder Assembly |
| Tech Note | Suggested to use with #12-1214. 3-Brush Generator Gear Pin. |
