V-Twin - 32-1672 - Black 12 Volt Alternator Generator Conversion Kit
Description

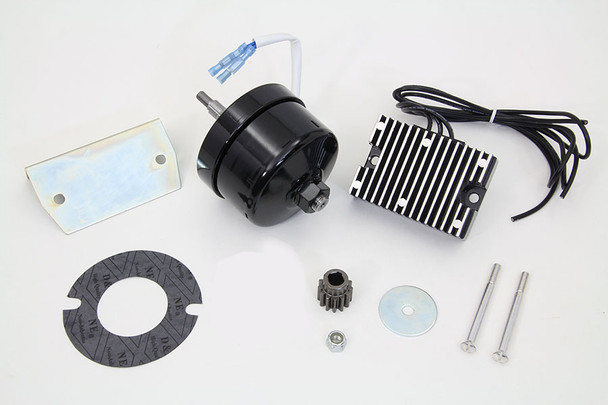

Black alternator bolts on in place of original 12 volt generator. Includes black solid state finned regulator, gear, gasket and mount screw set. Features higher output 17 amps @ 1000 rpm.
*NOTE: On 1941-57 models, generator screw holes must be enlarged to 5/16" for the generator screws supplied. Use helicoil inserts to convert alternator with 5/16-24 thread to 1/4-24 thread to accept early mount bolt set. *NOTE: The outer cover with the large hex nut houses the rotor magnets, which are encased in a stainless steel shell. This "rotor" turns when the engine is running.
Fits:
- FL 1941-1969
Additional Information
| UOM | 1 - KIT |
| Manufacturer | Volt Tech |
| Origin | Imported |
| 2025 Catalog Pages | 692 |
| Replacement Items | 32-0371 - Black 17 Amp 12 Volt Alternator Generator Conversion Kit 32-0220 - 13 Tooth 2-Brush Generator Drive Gear 8154-2 - Cadmium Generator Mounting Screws 31-0172 - Zinc Regulator Mount Bracket 15-0565 - Generator to Case Gaskets |
| Tech Note | Suggested to use with #16-0920 Thread Repair Kit Suggested to use with #14-0034 Alternator Seal. |
