V-Twin - 45-0783 - Stainless Steel 18 inch Spoke Set
Description

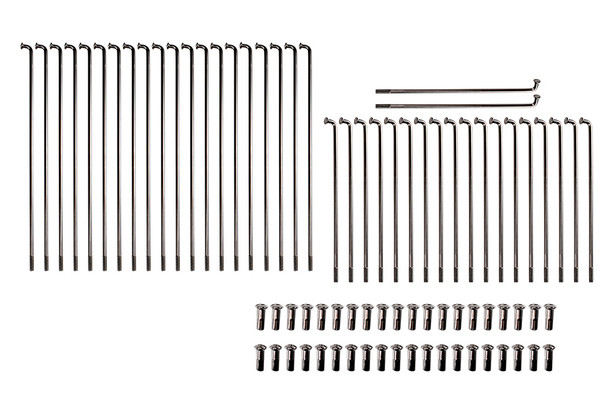

Stainless Steel spoke set for stock OE spoke pattern lacing. Kit includes 40 spoke nipples.
9 gauge diameter single stage spokes feature a natural finish and two sizes, 21.5mm and 15.5 mm. Cross four on drum side, and two on small hub diameter end. Nipples are stainless steel. *NOTE: We suggest using 22mm long nipples when lacing 45 Front drum wheels. *NOTE: If required, longer nipples are available separately.
Fits:
- WL 1936-1952
Additional Information
| UOM | 1 - KIT | ||||||||||||||||
| Measurements |
Manufacturer | V-Twin | Origin | Imported | 2025 Catalog Pages | 763 | Replacement Items | 45-0697 - Stainless Steel 18" Spoke Set | Tech Note | Suggested to use with #52-0945 Conventional and #52-0946 Replica 40 Spoke 18" X 3.15" Front Wheel Rims. Required to use with #45-0922 40 Piece Spoke Nipple Set Stainless Steel, if longer nipples are needed. Suggested to use with #45-0927 Spoke 40 Piece Stainless Steel Nipple Set. Information for lacing the 18" 45" wheel: Drum Side - Top cross 1, spoke head face down. Lower spoke cross 1, spoke head faces up. Spook side - top spoke cross 4 clockwise. Lower spoke cross 4 counter clockwise. 11/16" offset from drum flange to side of rim. Other Notes |
