V-Twin - 51-0767 - Dropped Swingarm Chrome
Description

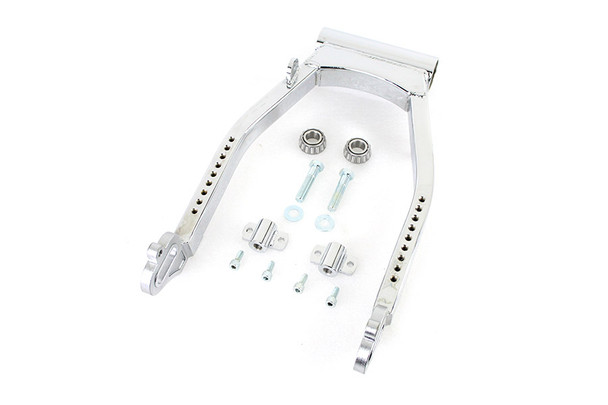

Chrome finish dropped swingarm features a raised up axle position, so this lowers the swingarm and chassis in relation to the axle. Axle slots are 3/4", for disc brake applications.
Lowers bike 1/2" and lengthens wheel base 1/2". Axle lowering plates take screw type adjusters. The blocks also have tabs to mount a sissy bar or fender brace to facilitate mounting the rear fender to the swingarm, for the "floating" rear fender look. There are also 5/16 x 18 drilled and tapped holes on the swingarm for mounting and "floating". Shock mounts are 1/2 x 20 thread. The distance between the axle plates measures 9-3/4". *NOTE: Spacers are required to be measured by the installer. *NOTE: Must order swingarm pivot pin assembly separately.
Fits:
- FL 1958-1984 chain drive models only
- FX 1971-1984 chain drive models only
Additional Information
| UOM | 1 - EA |
| Finish | Chrome |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 642 |
| Replacement Items | 44-1973 - Chrome Swingarm Pivot Kit |
| Tech Note | Suggested to use with #7704-2 Chrome Rear Chain Adjuster. |
