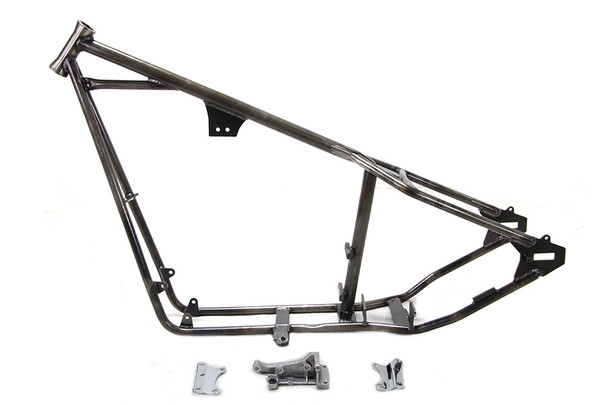

V-Twin - 51-3575 - 200 XL Rigid Frame 40 Rake
Description
200 XL rigid frame features a 40 rake with a 3" stretch in front legs to accept a 1-1/8" belt with 200 series tire.
Frame has kickstand tab and battery box mount welded in place. Accepts a right side drive transmission and is disc brake type. For use on 1957-1985 XL model. Frame does not have a cross shaft provision for mechanical brakes, available separately as required. Manufacturer's Statement of Origin is supplied for the frame. Includes front and rear motor plate mounts. See photo for installation. These mounts allow 1957-84 ironhead motors to be installed. Addition tabs and brackets may be required as build progresses. Mounts for sissy bar, oil, tank, battery, kickstand and rear fender mounts should be considered in advance before paint and final assembly. Always pre-build first, dissemble then the actual final build! Use spacers which have 3/4" flats, to fit plates with 9/16" axle hole. **NOTE: Check drain plug location for crack case drain, frame cross brace may have to be clearance to allow access to engine drain plug.
Fits:
- XL 1957-1985
Additional Information
| UOM | 1 - EA | |||||||||||
| Measurements |
Manufacturer | V-Twin | Origin | Imported | 2025 Catalog Pages | 929 | Replacement Items | 31-0224 - Rear Motor Mount | 31-2137 - Chrome Front Motor Mount Set 51-3525 - 200 XL Rigid Frame 40 Rake Tech Note | Required to use with #51-0389 XL Brake Shaft Tube Suggested to use with #44-0763 9/16" Rear Axle Adapter Spacer Set. **NOTE: All frames are shipped to the lower 48 states by common carrier truck, please allow extra time for delivery. All other shipments will be made air freight collect. *NOTE: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs. Related ProductsRelated Products  V-Twin - 51-3525 - 200 XL Rigid Frame 40 RakeV-Twin Mfg
