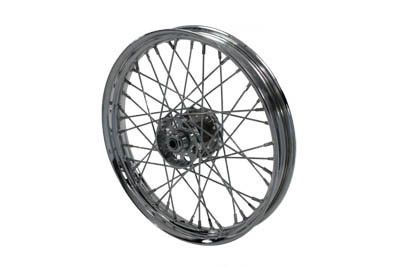

V-Twin - 52-0877 - 18 inch X 2.15 inch Front or Rear Spoke Wheel
Description
Replica 18" X 2.15" star hub type wheel kit includes a chrome hub, chrome drop center rim, polished stainless steel spokes and a rubber rim strip.
Wheel is assembled like stock with loose roller bearings. *NOTE: When lacing wheels we suggest using a 24mm long nipple set. *NOTE: The valve stem hole is on the star side of the hub and measures 3/16" from the drum side flange. *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs.
Fits:
- UL 1937-1948
- WL 1936-1952 rear only
- EL 1936-1940
- FL 1941-1966
Additional Information
| UOM | 1 - EA |
| Location | Front or Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 760 |
| Replacement Items | 52-1018 - 18" x 2.15" Wheel Rim Chrome 45-0748 - Polished Stainless Steel 18" Spoke Set |
| Tech Note | Suggested to use with #45-0922 40 Piece Spoke Nipple Set er Stainless steel, when lacing 45 front drum wheels. Lay straightedge across brake side spoke flange of hub and measure distance from straight ede to rim. Measures 1/4" when rim is correctly centered. |
