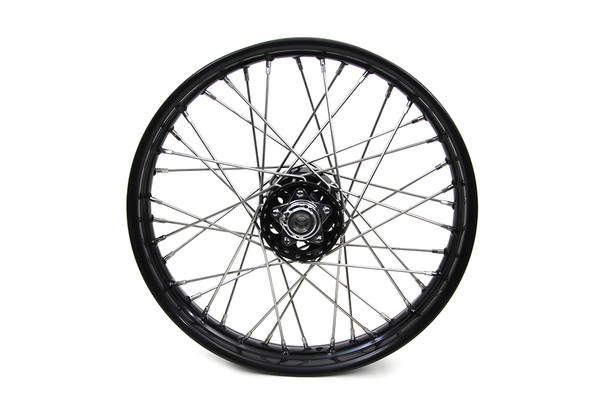

V-Twin - 52-0881 - 18 inch X 2.15 inch Replica Front or Rear Spoke Wheel
Description
Replica front or rear 18" x 2.15" star hub type wheel include a black rim, black hub, and stainless steel spokes. Wheels are installed with a rubber rim strip.
Parkerized star cover and screw kit available separately. Roller bearings have an inner diameter of 1-5/16" and an outer diameter of 1-27/32". *Note: UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs. *NOTE: Wheels accept metal stem inner tubes. *NOTE: The valve stem hole is on the star side of the hub and measures 3/16" from the drum side flange.
Fits:
- WL 1936-1952 rear only
- FL 1941-1966 Front or Rear
- UL 1937-1948 Front or Rear
- EL 1936-1940 Front or Rear
Additional Information
| UOM | 1 - EA |
| Location | Front or Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 760 |
| Replacement Items | 52-0785 - 18" x 2.15" Rolled Edge Rim Black 45-0748 - Polished Stainless Steel 18" Spoke Set |
| Tech Note | When looking at the star side of the wheel, the inner layer of spokes should point clockwise. Lay straightedge across brake side spoke flange of hub and measure distance from straight ede to rim. Measures 1/4" when rim is correctly centered. Suggested to use with 9/120 wheel |
