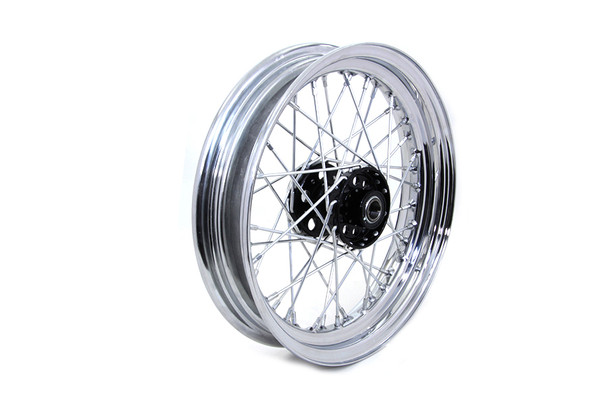

V-Twin - 52-2047 - 16 inch x 3.00 inch Replica Front or Rear Spoke Wheel
Description
Replica front or rear 16 x 3.00" star hub type wheel include a black hub, chrome rim, and cadmium spokes. Wheel is installed with a rubber rim strip.
NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation. *NOTE: The valve stem hole is on the star side of the hub and measures 11/64" from the drum side flange.
Fits:
- FL 1941-1966 Front or Rear
- UL 1937-1948 Front or Rear
- EL 1936-1940 Front or Rear
- WL 1936-1952 Rear only
Additional Information
| UOM | 1 - EA |
| Location | Front or Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 760 |
| Replacement Items | 45-0710 - Replica Cadmium Plated 16" Spoke Set 45-0323 - Star Hub Wheel Assembly |
| Tech Note | Place straightedge across rim on brake side and measure the distance from straightedge to brake side spoke flange of hub. Measures 11/64" when rim is correctly centered. |
