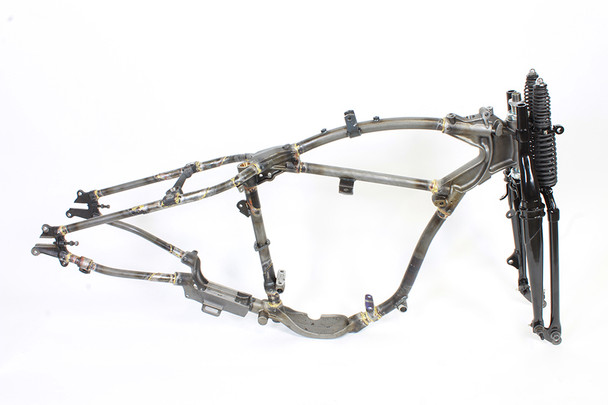

V-Twin - 55-1699 - 45 inch WL Frame and Fork Kit
Description
45" WL frame and fork kit includes a replica 45" W rigid frame, a black 28" inline Spring Fork assembly and a zinc fork neck cup set.
The stock replica Spring Fork assembly accepts all original style components and accessories for a detailed restoration look. The 45 rockers are mounted inside of the fork legs and accepts a 3/8" diameter axle. The replica 45 W stock style rigid frame with brazed joints features a raw finish. There's no Manufacturere's Statement of Origin, only a Bill of Sale. Don't forget the pre-assembly procedure! Before primer and paint, the frame will require de-greasing. Frame accepts 3 bolt transmission case. Top frame tube has threaded inserts to attach center tank panels. Threads are for #8822-18 bolt set. Fork assembly includes inner and outer springs, front and rear legs and spring rod with bushings. Top clamp, neck races and cone nut are not included.
Fits:
- WL 1936-1952
Additional Information
| UOM | 1 - KIT |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 815 |
| Replacement Items | 49-2400 - 18" Inline Spring Fork Assembly Black 51-1017 - 45" Rigid Frame 24-0110 - Zinc Ball Neck Cup Set |
| Tech Note | Suggested to use with #44-0716, 45" Front Wheel Hub Internal Kit *NOTE: UPS may consider this part as packages "oversize" forshipment, as compared to the actual weight, which will result in higher shipping costs. |
