Description

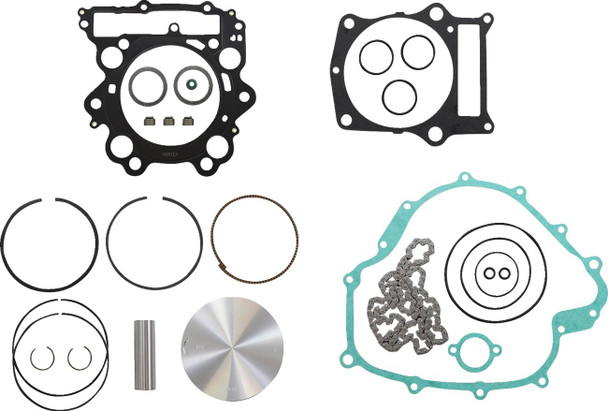

Vertex - 09103848 - Top End Piston Kit - 99.95 mm - Yamaha
Features
- The piston skirt is coated with high-tech Molybdenum Disulphite to allow faster break in time and increased piston life
- Cast piston kit is gravity-cast aluminum alloy (not forged) with 18% silicone content
- Replica piston and all rings are OEM replacements
- Top end kit includes piston, rings, pins, circlips, top end gaskets and cam chain
- Replacement Part for OEM Number(s):2C61163100X0
Specs
| Product Name | Top End Piston Kit |
| Style | Cast Replica |
| Units | Kit |
| Displacement | 660 cc |
| Piston Material | Cast |
| Riding Style | UTV |
| Cylinder Diameter Metric | 100.00 mm |
| Engine Type | 4-Stroke |
| Skirt Coating | Molybdenum Disulphite |
| Piston Diameter Metric | 99.95 mm |
| Compression Ratio Imperial | 9.1:1 |
| Piston Material | Aluminum Alloy |
| Riding Style | ATV |
Fitment
| 2004-2007 | Yamaha | YXR66F Rhino 660 |
| 2002-2004 | Yamaha | YFM660F Grizzly 4x4 |
