Description

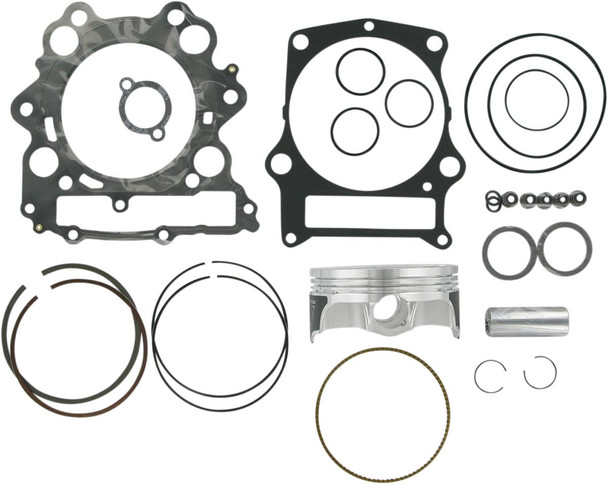

Wiseco - 09030625 - Piston Kit with Gasket - 100.00 mm - Yamaha
Features
- Wiseco ring types are not interchangeable (i.e., CD is not interchangeable with LC)
- Wiseco pistons can be fitted only with Wiseco rings
- Cylinder sleeves must be purchased separately.
Specs
| Displacement | 660 cc |
| Bore Size Metric | 100.00 mm |
| Model | Forged Series |
| Riding Style | UTV |
| Piston Diameter Metric | 99.92 mm |
| Riding Style | ATV |
| Stroke Length Metric | 84.00 mm |
| Type | Top End |
| Product Name | Rebuild Kit |
| Compression Ratio Imperial | 9.9:1 |
| Skirt Coating | ArmorGlide® |
| Units | Kit |
| Engine Type | 4-Stroke |
| Piston Material | 2618 Aluminum Alloy |
Fitment
| 2005-2007 | Yamaha | YXR66F Rhino 660 |
| 2006-2007 | Yamaha | YXR66F Rhino 660 Special Edition |
| 2002-2006 | Yamaha | YFM660F Grizzly 4x4 |
| 2006-2007 | Yamaha | YXR66F Rhino 660 Exploring Edition |
| 2007 | Yamaha | YXR66F Rhino 660 Ducks Unlimited |
| 2007 | Yamaha | YXR66F Rhino 660 Sport Edition |
| 2007-2008 | Yamaha | YFM 660 FG Grizzly 4x4 |
| 2007-2008 | Yamaha | YFM 660 FA Grizzly 4x4 |
