Description

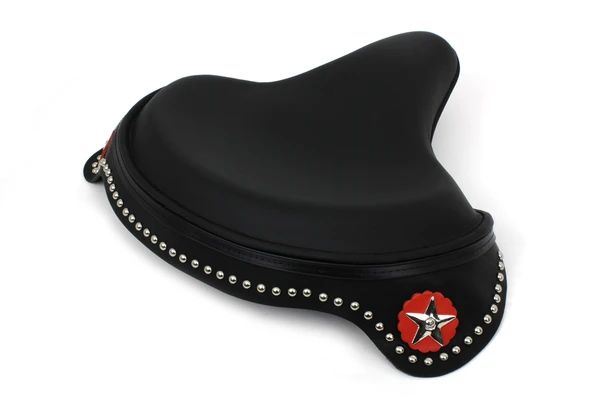

Corbin Gentry - Black Leather Solo Seat with Skirt fits '41-'84 FL, '36-'40 EL Models
Solo black leather seat has a black skirt with orange rosettes and nickel spots. Seat is constructed with a molded foam pad on a steel formed and ribbed baseplate with brackets riveted. It has rolled sewn edges. Accepts stock type T bar mount systems which must be ordered separately. Order mount hardware kit separately. the distance from the top rear of the seat to the bottom of the rear skirt measures 3-3/4". The disntace between the rear bolt holes measures 10-7/8", with a 5/16"-24 NF thread. The top to center is 10-3/8" on mounts. The front bolt holes to the rear measures7-3/8". The front bracket is 1-7/8" long with a 25/64" width.
Note:
- UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs
Installation Instructions:
Measurements:
- Seat Thickness: 2-7/8"
- Front Width: 4-1/2"
- Rear Skirt Length: 2"
Other Notes:
- Widest Seat Width: 17-1/4"
- Skirt Side Length: 4-3/8"
- Seat Width w/Skirt: 22"
Fitment:
- FL 1941-1984
- EL 1936-1940
- VL 1930-1936
- UL 1937-1948
- G 1937-1972
- WL 1929-1952
