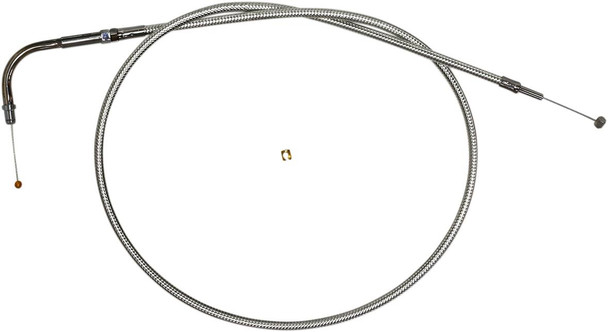

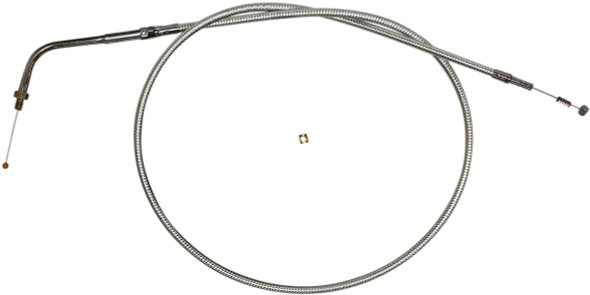

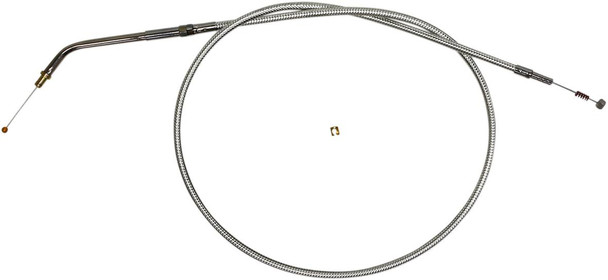

Magnum Shielding Braided Throttle & Idle Cables For Harley-Davidson
Magnum's braided throttle, idle and idle-cruise cables for cable-throttle Harleys, 1981 through the last of the cable bikes (2017 Dyna, 2015 Softail, 2007 Touring, 2022 Sportster). Stock length for factory bars, or longer for apes, T-bars and pullbacks, straight out of the Drag Specialties FatBook and OldBook application charts. Four braid finishes, all matched to Magnum's clutch cables and brake lines so the whole cockpit looks like one set.
How to order
- Your Bike – pick your year and model.
- Cable – Throttle, Idle, or Idle-Cruise (bikes with factory cruise control use an idle-cruise cable in place of the plain idle cable). You need one throttle and one idle cable per bike; the page only shows the cable types your bike takes.
- Length – the list trims down to the cables made for your bike's elbow angle and fitting, with the stock housing length marked. Figure about 2" of extra cable for every 2" of bar rise over stock; run the same over-stock length on throttle and idle. Lengths are outer housing only, excluding the elbow.
- Finish – Sterling Chromite II (chrome look), Black Pearl (black braid, black-chrome fittings), KARBONFIBR (carbon-fiber look) or Polished Stainless.
Features
- Meets or exceeds all OE specifications for fitment, construction and endurance
- Anti-friction inner liners and nylon adjuster inserts, factory lubricated for smooth, consistent, long-lasting operation
- All fittings polished and chrome or black-chrome plated
- Crystal-clear outer jacket never discolors and protects paint and chrome from scuffing
- Braid color and weave match all Magnum control cables and brake lines
- Pre-1996 cables have threaded elbows; 1996-up cables have non-threaded (smooth) elbows – the page keeps them separate
- Cables do not come with the compression spring, per OE specs
- Assembled in the U.S.A.
Magnum and Drag Specialties part numbers for every length and finish are on the Part Numbers tab. Closeout lengths are sold while Drag's stock lasts. If your bike isn't listed, ask us with your year, model and bar height.
Fitment
| Bike | Throttle (stock → available) | Idle | Idle-Cruise |
|---|---|---|---|
| Touring – 2006-2007 FLHX/I | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/8" (OE 56358-02) 70° 38-3/8", 41-1/2" (+3.125"), 44-3/8" (+6") |
| Touring – 2004-2007 FLHRS/I | 41" (OE 56555-04) 90° 26-1/2" (-14.5"), 28-1/2" (-12.5"), 30-3/4" (-10.25"), 32-3/4" (-8.25"), 34-3/4" (-6.25"), 36-5/8" (-4.375"), 36-3/4" (-4.25"), 38-3/4" (-2.25"), 39-1/2" (-1.5"), 40-1/2" (-0.5"), 40-3/4" (-0.25"), 41", 41-1/2" (+0.5"), 42-1/2" (+1.5"), 43-1/2" (+2.5"), 45-1/2" (+4.5"), 47" (+6"), 47-1/2" (+6.5"), 48" (+7"), 48-1/2" (+7.5"), 49-1/2" (+8.5"), 51-1/2" (+10.5"), 53-1/2" (+12.5") | – | 41-1/2" (OE 56293-03) 90° 25-1/8" (-16.375"), 38-7/8" (-2.625"), 41-1/2", 41-7/8" (+0.375"), 44" (+2.5"), 44-7/8" (+3.375"), 46" (+4.5"), 46-7/8" (+5.375"), 48" (+6.5"), 48-15/16" (+7.5"), 49" (+7.5"), 50" (+8.5"), 53-15/16" (+12.5") |
| Touring – 2002-2007 FLHR | 39-1/2" (OE 56376-02) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30-3/4" (-8.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 40-3/4" (+1.25"), 41" (+1.5"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47" (+7.5"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 51-1/2" (+12"), 53-1/2" (+14") | – | 38-7/8" (OE 56237-99A) 90° 25-1/8" (-13.75"), 38-7/8", 41-1/2" (+2.625"), 41-7/8" (+3"), 44" (+5.125"), 44-7/8" (+6"), 46" (+7.125"), 46-7/8" (+8"), 48" (+9.125"), 48-15/16" (+10.125"), 49" (+10.125"), 50" (+11.125"), 53-15/16" (+15.125") |
| Touring – 2002-2007 FLHR/I | 39-1/2" (OE 56376-02) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30-3/4" (-8.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 40-3/4" (+1.25"), 41" (+1.5"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47" (+7.5"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 51-1/2" (+12"), 53-1/2" (+14") | – | 38-7/8" (OE 56237-99A) 90° 25-1/8" (-13.75"), 38-7/8", 41-1/2" (+2.625"), 41-7/8" (+3"), 44" (+5.125"), 44-7/8" (+6"), 46" (+7.125"), 46-7/8" (+8"), 48" (+9.125"), 48-15/16" (+10.125"), 49" (+10.125"), 50" (+11.125"), 53-15/16" (+15.125") |
| Touring – 2002-2007 FLHRC/I | 39-1/2" (OE 56376-02) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30-3/4" (-8.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 40-3/4" (+1.25"), 41" (+1.5"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47" (+7.5"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 51-1/2" (+12"), 53-1/2" (+14") | – | 38-7/8" (OE 56237-99A) 90° 25-1/8" (-13.75"), 38-7/8", 41-1/2" (+2.625"), 41-7/8" (+3"), 44" (+5.125"), 44-7/8" (+6"), 46" (+7.125"), 46-7/8" (+8"), 48" (+9.125"), 48-15/16" (+10.125"), 49" (+10.125"), 50" (+11.125"), 53-15/16" (+15.125") |
| Touring – 2002-2007 FLHT | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/16" (OE 56525-02) 70° 38-3/8" (+0.25"), 41-1/2" (+3.375"), 44-3/8" (+6.25") |
| Touring – 2002-2007 FLHT/I | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/8" (OE 56358-02) 70° 38-3/8", 41-1/2" (+3.125"), 44-3/8" (+6") |
| Touring – 2002-2007 FLHTC | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/16" (OE 56525-02) 70° 38-3/8" (+0.25"), 41-1/2" (+3.375"), 44-3/8" (+6.25") |
| Touring – 2002-2007 FLHTC/I | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/8" (OE 56358-02) 70° 38-3/8", 41-1/2" (+3.125"), 44-3/8" (+6") |
| Touring – 2002-2007 FLHTCU/I | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/8" (OE 56358-02) 70° 38-3/8", 41-1/2" (+3.125"), 44-3/8" (+6") |
| Touring – 2002-2007 FLTR/I | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/8" (OE 56358-02) 70° 38-3/8", 41-1/2" (+3.125"), 44-3/8" (+6") |
| Touring – 2002-2004 FLTR | 39-1/2" (OE 56526-02) 70° 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 41-3/4" (+2.25"), 44" (+4.5"), 45-1/2" (+6"), 49-5/8" (+10.125") | – | 38-3/16" (OE 56525-02) 70° 38-3/8" (+0.25"), 41-1/2" (+3.375"), 44-3/8" (+6.25") |
| Touring – 2002-2003 FLHRSE/I | 42-1/2" (OE 56389-02) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30-3/4" (-11.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 40-3/4" (-1.75"), 41" (-1.5"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47" (+4.5"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 51-1/2" (+9"), 53-1/2" (+11") | – | 44" (OE 56390-02) 90° 25-1/8" (-18.875"), 38-7/8" (-5.125"), 41-1/2" (-2.5"), 41-7/8" (-2.125"), 44", 44-7/8" (+0.875"), 46" (+2"), 46-7/8" (+2.875"), 48" (+4"), 48-15/16" (+5"), 49" (+5"), 50" (+6"), 53-15/16" (+10") |
| Touring – 2000-2001 FLHR/I | 42-1/2" (OE 56379-97) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30-3/4" (-11.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 40-3/4" (-1.75"), 41" (-1.5"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47" (+4.5"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 51-1/2" (+9"), 53-1/2" (+11") | 42-1/2" (OE 56368-96) 90° 26-1/2" (-16"), 28" (-14.5"), 28-1/2" (-14"), 30" (-12.5"), 30-3/4" (-11.75"), 31-3/4" (-10.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 37-3/4" (-4.75"), 38" (-4.5"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 49-5/8" (+7.125"), 51-1/2" (+9") | – |
| Touring – 2000-2001 FLTRSE | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4", 44" (+2.25"), 45-1/2" (+3.75"), 49-5/8" (+7.875") | – | 41-1/2" (OE 56485-00B) 70° 38-3/8" (-3.125"), 41-1/2", 44-3/8" (+2.875") |
| Touring – 1999-2001 FLHR | 39-1/2" (OE 56376-96) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30-3/4" (-8.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 40-3/4" (+1.25"), 41" (+1.5"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47" (+7.5"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 51-1/2" (+12"), 53-1/2" (+14") | 39-1/2" (OE 56375-96) 90° 26-1/2" (-13"), 28" (-11.5"), 28-1/2" (-11"), 30" (-9.5"), 30-3/4" (-8.75"), 31-3/4" (-7.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 37-3/4" (-1.75"), 38" (-1.5"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 49-5/8" (+10.125"), 51-1/2" (+12") | – |
| Touring – 1999-2001 FLHRC/I | 42-1/2" (OE 56379-97) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30-3/4" (-11.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 40-3/4" (-1.75"), 41" (-1.5"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47" (+4.5"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 51-1/2" (+9"), 53-1/2" (+11") | 42-1/2" (OE 56368-96) 90° 26-1/2" (-16"), 28" (-14.5"), 28-1/2" (-14"), 30" (-12.5"), 30-3/4" (-11.75"), 31-3/4" (-10.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 37-3/4" (-4.75"), 38" (-4.5"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 49-5/8" (+7.125"), 51-1/2" (+9") | – |
| Touring – 1999-2001 FLHT | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75"), 44" (+6"), 45-1/2" (+7.5"), 49-5/8" (+11.625") | 38" (OE 56328-96) 70° 32-1/2" (-5.5"), 38", 41-3/4" (+3.75"), 46" (+8") | – |
| Touring – 1999-2001 FLHTC | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75"), 44" (+6"), 45-1/2" (+7.5"), 49-5/8" (+11.625") | 38" (OE 56328-96) 70° 32-1/2" (-5.5"), 38", 41-3/4" (+3.75"), 46" (+8") | – |
| Touring – 1999-2001 FLHTC/I | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4", 44" (+2.25"), 45-1/2" (+3.75"), 49-5/8" (+7.875") | 41-3/4" (OE 56387-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 41-3/4", 46" (+4.25") | – |
| Touring – 1999-2001 FLHTCU/I | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4", 44" (+2.25"), 45-1/2" (+3.75"), 49-5/8" (+7.875") | – | 41-1/2" (OE 56358-96) 70° 38-3/8" (-3.125"), 41-1/2", 44-3/8" (+2.875") |
| Touring – 1999-2001 FLTR | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75"), 44" (+6"), 45-1/2" (+7.5"), 49-5/8" (+11.625") | – | – |
| Touring – 1999-2001 FLTR/I | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4", 44" (+2.25"), 45-1/2" (+3.75"), 49-5/8" (+7.875") | – | 41-1/2" (OE 56358-96) 70° 38-3/8" (-3.125"), 41-1/2", 44-3/8" (+2.875") |
| Softail – 2013-2015 FXSB | 28-1/2" (OE 56100056) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28-1/2" (OE 27000004) 90° 26-1/2" (-2"), 28" (-0.5"), 28-1/2", 30" (+1.5"), 30-3/4" (+2.25"), 31-3/4" (+3.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 37-3/4" (+9.25"), 38" (+9.5"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 49-5/8" (+21.125"), 51-1/2" (+23") | – |
| Softail – 2012-2015 FLS | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2010-2015 FLSTFB | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2009-2015 FLSTC/I | 32-3/4" (OE 56939-07A) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56934-07A) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Softail – 2005-2015 FLSTN/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2001-2015 FLSTF/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2011-2013 FXS | 26-1/2" (OE 56432-98) 90° 26-1/2", 28-1/2" (+2"), 30-3/4" (+4.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 40-3/4" (+14.25"), 41" (+14.5"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47" (+20.5"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 51-1/2" (+25"), 53-1/2" (+27") | 26-1/2" (OE 56433-98) 90° 26-1/2", 28" (+1.5"), 28-1/2" (+2"), 30" (+3.5"), 30-3/4" (+4.25"), 31-3/4" (+5.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 37-3/4" (+11.25"), 38" (+11.5"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 49-5/8" (+23.125"), 51-1/2" (+25") | – |
| Softail – 2008-2011 FLSTSB | 34-3/4" (OE 56939-07A) 90° 26-1/2" (-8.25"), 28-1/2" (-6.25"), 30-3/4" (-4"), 32-3/4" (-2"), 34-3/4", 36-5/8" (+1.875"), 36-3/4" (+2"), 38-3/4" (+4"), 39-1/2" (+4.75"), 40-1/2" (+5.75"), 40-3/4" (+6"), 41" (+6.25"), 41-1/2" (+6.75"), 42-1/2" (+7.75"), 43-1/2" (+8.75"), 45-1/2" (+10.75"), 47" (+12.25"), 47-1/2" (+12.75"), 48" (+13.25"), 48-1/2" (+13.75"), 49-1/2" (+14.75"), 51-1/2" (+16.75"), 53-1/2" (+18.75") | 34-3/4" (OE 56934-07A) 90° 26-1/2" (-8.25"), 28" (-6.75"), 28-1/2" (-6.25"), 30" (-4.75"), 30-3/4" (-4"), 31-3/4" (-3"), 32-3/4" (-2"), 34-3/4", 36-5/8" (+1.875"), 36-3/4" (+2"), 37-3/4" (+3"), 38" (+3.25"), 38-3/4" (+4"), 39-1/2" (+4.75"), 40-1/2" (+5.75"), 41-1/2" (+6.75"), 42-1/2" (+7.75"), 43-1/2" (+8.75"), 45-1/2" (+10.75"), 47-1/2" (+12.75"), 48" (+13.25"), 48-1/2" (+13.75"), 49-1/2" (+14.75"), 49-5/8" (+14.875"), 51-1/2" (+16.75") | – |
| Softail – 2008-2011 FXCW/C | 32-3/4" (OE 56343-01) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56342-01) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Softail – 2007-2010 FXSTC | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Softail – 2006-2010 FLST/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2002-2010 FXST/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2000-2009 FXSTB/I | 26-1/2" (OE 56432-98) 90° 26-1/2", 28-1/2" (+2"), 30-3/4" (+4.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 40-3/4" (+14.25"), 41" (+14.5"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47" (+20.5"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 51-1/2" (+25"), 53-1/2" (+27") | 26-1/2" (OE 56433-98) 90° 26-1/2", 28" (+1.5"), 28-1/2" (+2"), 30" (+3.5"), 30-3/4" (+4.25"), 31-3/4" (+5.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 37-3/4" (+11.25"), 38" (+11.5"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 49-5/8" (+23.125"), 51-1/2" (+25") | – |
| Softail – 2002-2008 FLSTC/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2005-2007 FLSTSC/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2004-2007 FXSTS/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2000-2007 FXSTD/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2003-2004 FXSTDSEI | 28-1/2" (OE 56208-03) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28" (OE 26215-03) 90° 26-1/2" (-1.5"), 28", 28-1/2" (+0.5"), 30" (+2"), 30-3/4" (+2.75"), 31-3/4" (+3.75"), 32-3/4" (+4.75"), 34-3/4" (+6.75"), 36-5/8" (+8.625"), 36-3/4" (+8.75"), 37-3/4" (+9.75"), 38" (+10"), 38-3/4" (+10.75"), 39-1/2" (+11.5"), 40-1/2" (+12.5"), 41-1/2" (+13.5"), 42-1/2" (+14.5"), 43-1/2" (+15.5"), 45-1/2" (+17.5"), 47-1/2" (+19.5"), 48" (+20"), 48-1/2" (+20.5"), 49-1/2" (+21.5"), 49-5/8" (+21.625"), 51-1/2" (+23.5") | – |
| Softail – 2001-2003 FLSTS/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2000-2003 FXSTS/I | 32-1/2" (OE 56306-96) 70° 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 41-3/4" (+9.25"), 44" (+11.5"), 45-1/2" (+13"), 49-5/8" (+17.125") | 32-1/2" (OE 56305-96) 70° 32-1/2", 38" (+5.5"), 41-3/4" (+9.25"), 46" (+13.5") | – |
| Softail – 2000-2001 FLSTC | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2000-2001 FXST | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 2000 FLSTF | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-90) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2013-2017 FXDB w/ base mini ape bars | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 2010-2017 FXDWG | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2008-2017 FXDF | 28-1/2" (OE 56633-06) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28-1/2" (OE 56415-01) 90° 26-1/2" (-2"), 28" (-0.5"), 28-1/2", 30" (+1.5"), 30-3/4" (+2.25"), 31-3/4" (+3.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 37-3/4" (+9.25"), 38" (+9.5"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 49-5/8" (+21.125"), 51-1/2" (+23") | – |
| Dyna – 2006-2017 FXDL/I | 30-3/4" (OE 56434-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2013-2016 FXDB w/ optional drag bars | 28-1/2" (OE 56633-06) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28-1/2" (OE 56634-06) 90° 26-1/2" (-2"), 28" (-0.5"), 28-1/2", 30" (+1.5"), 30-3/4" (+2.25"), 31-3/4" (+3.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 37-3/4" (+9.25"), 38" (+9.5"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 49-5/8" (+21.125"), 51-1/2" (+23") | – |
| Dyna – 2013-2016 FXDB w/ optional pull back bars | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2012-2016 FLD | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2007-2015 FXDC/I | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2006-2012 FXDB/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 2006-2010 FXD/I | 28-1/2" (OE 56633-06) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28-1/2" (OE 56415-01) 90° 26-1/2" (-2"), 28" (-0.5"), 28-1/2", 30" (+1.5"), 30-3/4" (+2.25"), 31-3/4" (+3.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 37-3/4" (+9.25"), 38" (+9.5"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 49-5/8" (+21.125"), 51-1/2" (+23") | – |
| Dyna – 1999-2008 FXDWG/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 2006 FXD35 | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56342-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 2006 FXDC/I | 28-1/2" (OE 56633-06) 90° 26-1/2" (-2"), 28-1/2", 30-3/4" (+2.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 40-3/4" (+12.25"), 41" (+12.5"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47" (+18.5"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 51-1/2" (+23"), 53-1/2" (+25") | 28-1/2" (OE 56634-06) 90° 26-1/2" (-2"), 28" (-0.5"), 28-1/2", 30" (+1.5"), 30-3/4" (+2.25"), 31-3/4" (+3.25"), 32-3/4" (+4.25"), 34-3/4" (+6.25"), 36-5/8" (+8.125"), 36-3/4" (+8.25"), 37-3/4" (+9.25"), 38" (+9.5"), 38-3/4" (+10.25"), 39-1/2" (+11"), 40-1/2" (+12"), 41-1/2" (+13"), 42-1/2" (+14"), 43-1/2" (+15"), 45-1/2" (+17"), 47-1/2" (+19"), 48" (+19.5"), 48-1/2" (+20"), 49-1/2" (+21"), 49-5/8" (+21.125"), 51-1/2" (+23") | – |
| Dyna – 2005 FXDC/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1999-2005 FXD/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1999-2005 FXDL/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1999-2005 FXDX/I | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 2001-2003 FXDXT | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 2001-2002 FXDWG CVO | 30-3/4" (OE 56343-01) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41" (+10.25"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75"), 53-1/2" (+22.75") | 30-3/4" (OE 56408-01) 90° 26-1/2" (-4.25"), 28" (-2.75"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Dyna – 1999-2000 FXDS Conv. | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41" (+8.25"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75"), 53-1/2" (+20.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28" (-4.75"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Sportster – 2010-2022 XL1200X | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2009-2022 XL883N | 30" (OE 58884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2018-2021 XL1200NS | 31-7/8" (OE 55785-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | 31-7/8" (OE 55786-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | – |
| Sportster – 2011-2020 XL1200C w/ base pull back bar | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2011-2020 XL1200C w/ optional drag bar | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2011-2020 XL1200C w/ optional mini-ape bar | 31-7/8" (OE 55785-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | 31-7/8" (OE 55786-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | – |
| Sportster – 2007-2020 XL883L | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2018-2019 XL1200XS | 31-7/8" (OE 55785-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | 31-7/8" (OE 55786-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | – |
| Sportster – 2014-2017 XL1200T | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2012-2016 XL1200V | 31-7/8" (OE 55785-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | 31-7/8" (OE 55786-11) 45° 30" (-1.875"), 31-7/8", 34" (+2.125"), 36" (+4.125"), 37-7/8" (+6"), 39-7/8" (+8") | – |
| Sportster – 2007-2012 XL1200N | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007-2011 XL1200L | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007-2010 XL1200C | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007-2010 XL883C | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007-2009 XL883 | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007-2008 XL1200R | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007 XL50 | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2007 XL883R | 30" (OE 56884-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | 30" (OE 56885-07) 45° 30", 31-7/8" (+1.875"), 34" (+4"), 36" (+6"), 37-7/8" (+7.875"), 39-7/8" (+9.875") | – |
| Sportster – 2006 XL1200L | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 2005-2006 XL883L | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56309-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 2005-2006 XL883R | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 2004-2006 XL1200R | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 2004-2006 XL883 | 30" (OE 56884-07) 45° 28-3/4" (-1.25"), 30", 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6"), 38" (+8") | 28-3/4" (OE 56309-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 1999-2006 XL1200C | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 1999-2006 XL883C | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 1996-2006 XLH883 Std. | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 2002-2003 XL883R | 30" (OE 56308-96) 45° 28-3/4" (-1.25"), 30", 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6"), 38" (+8") | 30" (OE 56309-96) 45° 28-3/4" (-1.25"), 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6") | – |
| Sportster – 1996-2003 XL1200S | 28-3/4" (OE 56400-96) 45° 28-3/4", 30" (+1.25"), 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25"), 38" (+9.25") | 28-3/4" (OE 56401-96) 45° 28-3/4", 31-3/4" (+3"), 33-3/4" (+5"), 34-3/4" (+6"), 36" (+7.25") | – |
| Sportster – 1996-2003 XLH1200 | 30" (OE 56308-96) 45° 28-3/4" (-1.25"), 30", 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6"), 38" (+8") | 30" (OE 56309-96) 45° 28-3/4" (-1.25"), 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6") | – |
| Sportster – 1996-2003 XLH883 Hugger | 30" (OE 56308-96) 45° 28-3/4" (-1.25"), 30", 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6"), 38" (+8") | 30" (OE 56309-96) 45° 28-3/4" (-1.25"), 31-3/4" (+1.75"), 33-3/4" (+3.75"), 34-3/4" (+4.75"), 36" (+6") | – |
| Sportster – 1996-1998 XL1200C | 31-3/4" (OE 56381-96) 45° 28-3/4" (-3"), 30" (-1.75"), 31-3/4", 33-3/4" (+2"), 34-3/4" (+3"), 36" (+4.25"), 38" (+6.25") | 31-3/4" (OE 56382-96) 45° 28-3/4" (-3"), 31-3/4", 33-3/4" (+2"), 34-3/4" (+3"), 36" (+4.25") | – |
| Sportster – 1988-1995 XLH1200 | 30" (OE 56308-88) 45° threaded 30" | 30" (OE 56309-88) 45° threaded 30" | – |
| Sportster – 1988-1995 XLH883 Deluxe | 30" (OE 56308-88) 45° threaded 30" | 30" (OE 56309-88) 45° threaded 30" | – |
| Sportster – 1988-1995 XLH883 Hugger | 30" (OE 56308-88) 45° threaded 30" | 30" (OE 56309-88) 45° threaded 30" | – |
| Sportster – 1988-1995 XLH883 Std. | 30" (OE 56308-88) 45° threaded 30" | 30" (OE 56309-88) 45° threaded 30" | – |
| V-Rod – 2004-2005 VRSCB | 27-1/2" (OE 56593-04) 70° 29-1/2" (+2") | 26-1/2" (OE 56594-04) 70° 26-1/2" | – |
| Touring – 1998 FLHRCI | 42-1/2" (OE 56379-97) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30-3/4" (-11.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 40-3/4" (-1.75"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47" (+4.5"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 51-1/2" (+9") | 42-1/2" (OE 56368-96) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30" (-12.5"), 30-3/4" (-11.75"), 31-3/4" (-10.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 37-3/4" (-4.75"), 38" (-4.5"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 49-5/8" (+7.125"), 51-1/2" (+9") | – |
| Touring – 1998 FLTR | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75") | – | – |
| Touring – 1998 FLTRI | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4" | – | 41-1/2" (OE 56358-96) 70° 41-1/2" |
| Touring – 1996-1998 FLHR | 39-1/2" (OE 56523-02) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30-3/4" (-8.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 40-3/4" (+1.25"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47" (+7.5"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 51-1/2" (+12") | 39-1/2" (OE 56375-96) 90° 26-1/2" (-13"), 28-1/2" (-11"), 30" (-9.5"), 30-3/4" (-8.75"), 31-3/4" (-7.75"), 32-3/4" (-6.75"), 34-3/4" (-4.75"), 36-5/8" (-2.875"), 36-3/4" (-2.75"), 37-3/4" (-1.75"), 38" (-1.5"), 38-3/4" (-0.75"), 39-1/2", 40-1/2" (+1"), 41-1/2" (+2"), 42-1/2" (+3"), 43-1/2" (+4"), 45-1/2" (+6"), 47-1/2" (+8"), 48" (+8.5"), 48-1/2" (+9"), 49-1/2" (+10"), 49-5/8" (+10.125"), 51-1/2" (+12") | – |
| Touring – 1996-1998 FLHT | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75") | 38" (OE 56328-96) 70° 32-1/2" (-5.5"), 38", 41-3/4" (+3.75"), 46" (+8") | – |
| Touring – 1996-1998 FLHTC | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75") | 38" (OE 56328-96) 70° 32-1/2" (-5.5"), 38", 41-3/4" (+3.75"), 46" (+8") | – |
| Touring – 1996-1998 FLHTCI | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4" | 41-3/4" (OE 56387-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 41-3/4", 46" (+4.25") | – |
| Touring – 1996-1998 FLHTCU | 38" (OE 56327-96) 70° 32-1/2" (-5.5"), 38", 39-1/2" (+1.5"), 41-3/4" (+3.75") | – | – |
| Touring – 1996-1998 FLHTCUI | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4" | – | 41-1/2" (OE 56358-96) 70° 41-1/2" |
| Touring – 1996-1997 FLHRI | 42-1/2" (OE 56379-97) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30-3/4" (-11.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 40-3/4" (-1.75"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47" (+4.5"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 51-1/2" (+9") | 42-1/2" (OE 56368-96) 90° 26-1/2" (-16"), 28-1/2" (-14"), 30" (-12.5"), 30-3/4" (-11.75"), 31-3/4" (-10.75"), 32-3/4" (-9.75"), 34-3/4" (-7.75"), 36-5/8" (-5.875"), 36-3/4" (-5.75"), 37-3/4" (-4.75"), 38" (-4.5"), 38-3/4" (-3.75"), 39-1/2" (-3"), 40-1/2" (-2"), 41-1/2" (-1"), 42-1/2", 43-1/2" (+1"), 45-1/2" (+3"), 47-1/2" (+5"), 48" (+5.5"), 48-1/2" (+6"), 49-1/2" (+7"), 49-5/8" (+7.125"), 51-1/2" (+9") | – |
| Touring – 1996 FLTCUI | 41-3/4" (OE 56357-96) 70° 32-1/2" (-9.25"), 38" (-3.75"), 39-1/2" (-2.25"), 41-3/4" | – | 41-1/2" (OE 56358-96) 70° 41-1/2" |
| Touring – 1995 FLHT | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56328-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1994-1995 FLHR | 39-1/2" (OE 56376-94) 90° threaded 30" (-9.5"), 32-1/2" (-7"), 38" (-1.5"), 39-1/2", 45-1/2" (+6") | 39-1/2" (OE 56375-94) 90° threaded 30" (-9.5"), 31-3/4" (-7.75"), 37-3/4" (-1.75"), 39-1/2", 45-1/2" (+6") | – |
| Touring – 1990-1995 FLHTC | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56328-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1990-1995 FLHTCU | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56323-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1990-1995 FLTCU | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56328-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1990-1993 FLHS | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56328-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1990-1991 FLTC | 38" (OE 56327-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | 38" (OE 56328-90) 70° threaded 32-1/2" (-5.5"), 38", 44" (+6") | – |
| Touring – 1987-1989 FLHS | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1987-1989 FLHTCU | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1984-1989 FLHTC | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1984-1989 FLTC | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1984-1987 FLHT | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1984-1986 FLT | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1981-1984 FL/H | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Touring – 1983 FLHT | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Touring – 1983 FLHTC | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Touring – 1982-1983 FLT | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Touring – 1982-1983 FLTC | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Touring – 1981 FLT | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Touring – 1981 FLTC | 42-1/2" (OE 56327-81B) 70° threaded 42-1/2" | 42-1/2" (OE 56328-81B) 70° threaded 42-1/2" | – |
| Softail – 1999 FXST | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1999 FXSTB | 26-1/2" (OE 56432-98) 90° 26-1/2", 28-1/2" (+2"), 30-3/4" (+4.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 40-3/4" (+14.25"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47" (+20.5"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 51-1/2" (+25") | 26-1/2" (OE 56433-98) 90° 26-1/2", 28-1/2" (+2"), 30" (+3.5"), 30-3/4" (+4.25"), 31-3/4" (+5.25"), 32-3/4" (+6.25"), 34-3/4" (+8.25"), 36-5/8" (+10.125"), 36-3/4" (+10.25"), 37-3/4" (+11.25"), 38" (+11.5"), 38-3/4" (+12.25"), 39-1/2" (+13"), 40-1/2" (+14"), 41-1/2" (+15"), 42-1/2" (+16"), 43-1/2" (+17"), 45-1/2" (+19"), 47-1/2" (+21"), 48" (+21.5"), 48-1/2" (+22"), 49-1/2" (+23"), 49-5/8" (+23.125"), 51-1/2" (+25") | – |
| Softail – 1997-1999 FLSTS | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1996-1999 FLSTC | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1996-1999 FLSTF | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-90) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1996-1999 FXSTC | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1996-1999 FXSTS | 32-1/2" (OE 56306-96) 70° 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 41-3/4" (+9.25") | 32-1/2" (OE 56305-96) 70° 32-1/2", 38" (+5.5"), 41-3/4" (+9.25"), 46" (+13.5") | – |
| Softail – 1996-1997 FXSTSB | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1996 FLSTN | 30-3/4" (OE 56356-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30-3/4", 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 40-3/4" (+10"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47" (+16.25"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 51-1/2" (+20.75") | 30-3/4" (OE 56342-96) 90° 26-1/2" (-4.25"), 28-1/2" (-2.25"), 30" (-0.75"), 30-3/4", 31-3/4" (+1"), 32-3/4" (+2"), 34-3/4" (+4"), 36-5/8" (+5.875"), 36-3/4" (+6"), 37-3/4" (+7"), 38" (+7.25"), 38-3/4" (+8"), 39-1/2" (+8.75"), 40-1/2" (+9.75"), 41-1/2" (+10.75"), 42-1/2" (+11.75"), 43-1/2" (+12.75"), 45-1/2" (+14.75"), 47-1/2" (+16.75"), 48" (+17.25"), 48-1/2" (+17.75"), 49-1/2" (+18.75"), 49-5/8" (+18.875"), 51-1/2" (+20.75") | – |
| Softail – 1995 FXSTSB | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1993-1995 FLSTN | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1990-1995 FLSTC | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1990-1995 FLSTF | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1990-1995 FXSTC | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1990-1995 FXSTS | 32-1/2" (OE 56306-90) 70° threaded 32-1/2", 38" (+5.5"), 44" (+11.5") | 32-1/2" (OE 56305-90) 70° threaded 32-1/2", 38" (+5.5"), 44" (+11.5") | – |
| Softail – 1990 FLST | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1990 FXST | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Softail – 1987-1989 FLSTC | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Softail – 1986-1989 FLST | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Softail – 1986-1989 FXSTC | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Softail – 1984-1989 FXST | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Dyna – 1996-1998 FXD | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1996-1998 FXDL | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1996-1998 FXDS Conv. | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1996-1998 FXDWG | 32-3/4" (OE 56356-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30-3/4" (-2"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 40-3/4" (+8"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47" (+14.25"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 51-1/2" (+18.75") | 32-3/4" (OE 56355-96) 90° 26-1/2" (-6.25"), 28-1/2" (-4.25"), 30" (-2.75"), 30-3/4" (-2"), 31-3/4" (-1"), 32-3/4", 34-3/4" (+2"), 36-5/8" (+3.875"), 36-3/4" (+4"), 37-3/4" (+5"), 38" (+5.25"), 38-3/4" (+6"), 39-1/2" (+6.75"), 40-1/2" (+7.75"), 41-1/2" (+8.75"), 42-1/2" (+9.75"), 43-1/2" (+10.75"), 45-1/2" (+12.75"), 47-1/2" (+14.75"), 48" (+15.25"), 48-1/2" (+15.75"), 49-1/2" (+16.75"), 49-5/8" (+16.875"), 51-1/2" (+18.75") | – |
| Dyna – 1995 FXD | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1994-1995 FXDS Conv. | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1993-1995 FXDL | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1993-1995 FXDWG | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1992 FXDB | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1992 FXDC | 32-1/2" (OE 56356-92) 90° threaded 30" (-2.5"), 32-1/2", 38" (+5.5"), 39-1/2" (+7"), 45-1/2" (+13") | 31-3/4" (OE 56355-92) 90° threaded 30" (-1.75"), 31-3/4", 37-3/4" (+6"), 39-1/2" (+7.75"), 45-1/2" (+13.75") | – |
| Dyna – 1991 FXDB | 30" (OE 56343-90) 90° threaded 30", 32-1/2" (+2.5"), 38" (+8"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | 30" (OE 56342-90) 90° threaded 30", 31-3/4" (+1.75"), 37-3/4" (+7.75"), 39-1/2" (+9.5"), 45-1/2" (+15.5") | – |
| Sportster – 1981-1985 XLH | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| Sportster – 1981-1982 XLS | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1990-1994 FXR | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FXR – 1990-1993 FXRS-Conv. | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FXR – 1990-1993 FXRS/SP | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FXR – 1990-1992 FXRS | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FXR – 1990-1992 FXRT | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FXR – 1989 FXRS-Conv. | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1982-1989 FXR | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1982-1989 FXRS | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1985-1987 FXRC | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1985-1986 FXRS/SP | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FXR – 1984 FXRDG | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1990-1994 FXLR | 30" (OE 56343-90) 90° threaded 30" | 30" (OE 56342-90) 90° threaded 30" | – |
| FX – 1981-1986 FXWG | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1984-1985 FXEF | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1983-1985 FXSB | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1981-1984 FXE | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1982 FXB | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1981-1982 FXS | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
| FX – 1981 FXEF | 32-1/2" (OE 56324-81C) 45° threaded 32-1/2", 38" (+5.5") | 32-1/2" (OE 56323-81C) 45° threaded 32-1/2", 38" (+5.5") | – |
Housing length excludes the elbow. Source: 2026 Drag Specialties FatBook pp. 1473-1479 and 2026-27 OldBook pp. 895-898.
Part Numbers
| Cable | Application | Housing length | Sterling Chromite II | Black Pearl | KARBONFIBR | Polished Stainless |
|---|---|---|---|---|---|---|
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 26-1/2" | DS-3326 Magnum 3326 | 0650-0711 Magnum 4326 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 28-1/2" | 0650-0002 Magnum 33262 | 0650-0740 Magnum 43262 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 30-3/4" | DS-3325 Magnum 3325 | 0650-0710 Magnum 4325 | 0650-1767 Magnum 7325 | 0650-0725 Magnum 5325 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 32-3/4" | 0650-1643 Magnum 33252 | 0650-1647 Magnum 43252 | 0650-1765 Magnum 7319 | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 34-3/4" | 0650-0401 Magnum 33254 | 0650-0738 Magnum 43254 | – | 0650-0757 Magnum 53254 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 36-5/8" | – | – | 0650-1773 Magnum 73256 | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 36-3/4" | 0650-0397 Magnum 33256 | 0650-0739 Magnum 43256 | – | 0650-0758 Magnum 53256 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 38-3/4" | 0650-1644 Magnum 33258 | 0650-1648 Magnum 43258 | 0650-1774 Magnum 73258 | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 39-1/2" | DS-3321 Magnum 3321 | 0650-0707 Magnum 4321 | – | 0650-0722 Magnum 5321 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 40-1/2" | – | – | 0650-1768 Magnum 73198 | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 40-3/4" | 0650-1650 Magnum 332510 | 0650-1652 Magnum 432510 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 41" | 0650-0361 Magnum 3334 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 41-1/2" | 0650-0398 Magnum 33212 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 42-1/2" | DS-3322 Magnum 3322 | 0650-0708 Magnum 4322 | 0650-1769 Magnum 73213 | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 43-1/2" | 0650-0399 Magnum 33214 | 0650-0735 Magnum 43214 | – | 0650-0751 Magnum 53214 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 45-1/2" | DS-33216 Magnum 33216 | 0650-0736 Magnum 43216 | – | 0650-0752 Magnum 53216 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 47" | – | 0650-0767 Magnum 433410 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 47-1/2" | 0650-0400 Magnum 33218 | 0650-0737 Magnum 43218 | 0650-1771 Magnum 73218 | 0650-0753 Magnum 53218 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 48" | DS-33226 Magnum 33226 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 48-1/2" | 0650-0004 Magnum 33219 | – | – | 0650-0755 Magnum 53226 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 49-1/2" | 0650-0392 Magnum 332110 | 0650-0766 Magnum 432110 | – | 0650-0769 Magnum 532110 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 51-1/2" | 0650-0394 Magnum 333410 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 53-1/2" | 0650-1682 Magnum 332114 | 0650-1683 Magnum 432114 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 26-1/2" | DS-3426 Magnum 3426 | 0651-0402 Magnum 4426 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 28" | 0651-0066 Magnum 3434 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 28-1/2" | 0651-0001 Magnum 34262 | 0651-0864 Magnum 44262 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 30" | – | – | – | 0651-0419 Magnum 5425 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 30-3/4" | DS-3425 Magnum 3425 | 0651-0401 Magnum 4425 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 31-3/4" | – | – | 0651-0903 Magnum 7419 | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 32-3/4" | 0651-0197 Magnum 34252 | 0651-0862 Magnum 44252 | 0651-0909 Magnum 74252 | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 34-3/4" | 0651-0198 Magnum 34254 | 0651-0435 Magnum 44254 | – | 0651-0462 Magnum 54254 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 36-5/8" | – | – | 0651-0911 Magnum 74256 | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 36-3/4" | 0651-0199 Magnum 34256 | 0651-0436 Magnum 44256 | – | 0651-0463 Magnum 54256 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 37-3/4" | – | 0651-0430 Magnum 44196 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 38" | DS-34196 Magnum 34196 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 38-3/4" | 0651-0859 Magnum 34258 | 0651-0863 Magnum 44258 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 39-1/2" | DS-3421 Magnum 3421 | 0651-0398 Magnum 4421 | – | 0651-0416 Magnum 5421 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 40-1/2" | 0651-0555 Magnum 342510 | 0651-0556 Magnum 442510 | 0651-0919 Magnum 742510 | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 41-1/2" | 0651-0194 Magnum 34212 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 42-1/2" | DS-3422 Magnum 3422 | 0651-0399 Magnum 4422 | – | 0651-0417 Magnum 5422 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 43-1/2" | 0651-0195 Magnum 34214 | 0651-0432 Magnum 44214 | – | 0651-0455 Magnum 54214 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 45-1/2" | DS-34216 Magnum 34216 | 0651-0433 Magnum 44216 | – | 0651-0456 Magnum 54216 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 47-1/2" | 0651-0196 Magnum 34218 | 0651-0434 Magnum 44218 | 0651-0908 Magnum 74218 | 0651-0457 Magnum 54218 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 48" | DS-34226 Magnum 34226 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 48-1/2" | 0651-0003 Magnum 34219 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 49-1/2" | 0651-0227 Magnum 342110 | 0651-0478 Magnum 442110 | – | 0651-0481 Magnum 542110 |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 49-5/8" | – | – | 0651-0918 Magnum 742110 | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 90° | 51-1/2" | 0651-0228 Magnum 342112 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 32-1/2" | DS-3320 Magnum 3320 | 0650-0701 Magnum 4320 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 38" | DS-3316 Magnum 3316 | 0650-0705 Magnum 4316 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 39-1/2" | 0650-0360 Magnum 3330 | 0650-0712 Magnum 4330 | – | 0650-0727 Magnum 5330 |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 41-3/4" | DS-3323 Magnum 3323 | 0650-0709 Magnum 4323 | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 44" | DS-33166 Magnum 33166 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 45-1/2" | 0650-0114 Magnum 33306 | – | – | – |
| Throttle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 49-5/8" | 0650-1651 Magnum 333010 | – | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 32-1/2" | DS-3420 Magnum 3420 | 0651-0397 Magnum 4420 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 38" | – | 0651-0395 Magnum 4416 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 41-3/4" | DS-3423 Magnum 3423 | 0651-0400 Magnum 4423 | – | – |
| Idle | Touring '99-'07 / Softail '00-'15 / Dyna '99-'17 70° | 46" | 0651-0006 Magnum 34168 | – | – | – |
| Throttle | Sportster '07-'22 45° | 30" | – | 0650-1391 Magnum 4336 | – | – |
| Throttle | Sportster '07-'22 45° | 31-7/8" | – | 0650-1392 Magnum 43362 | – | – |
| Throttle | Sportster '07-'22 45° | 34" | – | 0650-1393 Magnum 43364 | – | – |
| Throttle | Sportster '07-'22 45° | 36" | 0650-0607 Magnum 33366 | 0650-1394 Magnum 43366 | – | – |
| Throttle | Sportster '07-'22 45° | 37-7/8" | – | 0650-1395 Magnum 43368 | – | – |
| Throttle | Sportster '07-'22 45° | 39-7/8" | – | 0650-1396 Magnum 433610 | – | – |
| Idle | Sportster '07-'22 45° | 30" | – | 0651-0719 Magnum 4436 | – | – |
| Idle | Sportster '07-'22 45° | 31-7/8" | – | 0651-0720 Magnum 44362 | – | – |
| Idle | Sportster '07-'22 45° | 34" | – | 0651-0721 Magnum 44364 | – | – |
| Idle | Sportster '07-'22 45° | 36" | 0651-0375 Magnum 34366 | 0651-0722 Magnum 44366 | – | – |
| Idle | Sportster '07-'22 45° | 37-7/8" | – | 0651-0723 Magnum 44368 | 0651-0917 Magnum 74368 | – |
| Idle | Sportster '07-'22 45° | 39-7/8" | – | 0651-0724 Magnum 443610 | – | – |
| Throttle | Sportster '96-'06 45° | 28-3/4" | DS-3313 Magnum 3313 | 0650-0702 Magnum 4313 | – | – |
| Throttle | Sportster '96-'06 45° | 30" | DS-3314 Magnum 3314 | 0650-1391 Magnum 4336 | – | – |
| Throttle | Sportster '96-'06 45° | 31-3/4" | DS-3315 Magnum 3315 | 0650-0704 Magnum 4315 | – | – |
| Throttle | Sportster '96-'06 45° | 33-3/4" | DS-33136 Magnum 33136 | – | – | – |
| Throttle | Sportster '96-'06 45° | 34-3/4" | – | – | – | 0650-0742 Magnum 53136 |
| Throttle | Sportster '96-'06 45° | 36" | DS-33146 Magnum 33146 | – | – | – |
| Throttle | Sportster '96-'06 45° | 38" | DS-33156 Magnum 33156 | – | – | – |
| Idle | Sportster '96-'06 45° | 28-3/4" | DS-3413 Magnum 3413 | 0651-0392 Magnum 4413 | – | – |
| Idle | Sportster '96-'06 45° | 31-3/4" | DS-3415 Magnum 3415 | 0651-0394 Magnum 4415 | – | – |
| Idle | Sportster '96-'06 45° | 33-3/4" | DS-34136 Magnum 34136 | – | – | – |
| Idle | Sportster '96-'06 45° | 34-3/4" | – | – | – | 0651-0444 Magnum 54136 |
| Idle | Sportster '96-'06 45° | 36" | DS-34146 Magnum 34146 | – | – | – |
| Throttle | Sportster '88-'95 45° threaded | 30" | DS-3304 Magnum 3304 | – | – | – |
| Idle | Sportster '88-'95 45° threaded | 30" | DS-3404 Magnum 3404 | – | – | – |
| Throttle | V-Rod '02-'06 70° | 29-1/2" | 0650-0193 Magnum 33332 | – | – | – |
| Idle | V-Rod '02-'06 70° | 26-1/2" | 0651-0067 Magnum 3433 | – | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 26-1/2" | DS-3326 Magnum 3326 | 0650-0711 Magnum 4326 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 28-1/2" | 0650-0002 Magnum 33262 | 0650-0740 Magnum 43262 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 30-3/4" | DS-3325 Magnum 3325 | 0650-0710 Magnum 4325 | 0650-1767 Magnum 7325 | 0650-0725 Magnum 5325 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 32-3/4" | 0650-1643 Magnum 33252 | 0650-1647 Magnum 43252 | 0650-1765 Magnum 7319 | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 34-3/4" | 0650-0401 Magnum 33254 | 0650-0738 Magnum 43254 | – | 0650-0757 Magnum 53254 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 36-5/8" | – | – | 0650-1773 Magnum 73256 | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 36-3/4" | 0650-0397 Magnum 33256 | 0650-0739 Magnum 43256 | – | 0650-0758 Magnum 53256 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 38-3/4" | 0650-1644 Magnum 33258 | 0650-1648 Magnum 43258 | 0650-1774 Magnum 73258 | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 39-1/2" | DS-3321 Magnum 3321 | 0650-0707 Magnum 4321 | – | 0650-0722 Magnum 5321 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 40-1/2" | – | – | 0650-1768 Magnum 73198 | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 40-3/4" | 0650-1650 Magnum 332510 | 0650-1652 Magnum 432510 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 41-1/2" | 0650-0398 Magnum 33212 | – | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 42-1/2" | DS-3322 Magnum 3322 | 0650-0708 Magnum 4322 | 0650-1769 Magnum 73213 | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 43-1/2" | 0650-0399 Magnum 33214 | 0650-0735 Magnum 43214 | – | 0650-0751 Magnum 53214 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 45-1/2" | DS-33216 Magnum 33216 | 0650-0736 Magnum 43216 | – | 0650-0752 Magnum 53216 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 47" | – | 0650-0767 Magnum 433410 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 47-1/2" | 0650-0400 Magnum 33218 | 0650-0737 Magnum 43218 | 0650-1771 Magnum 73218 | 0650-0753 Magnum 53218 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 48" | DS-33226 Magnum 33226 | – | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 48-1/2" | 0650-0004 Magnum 33219 | – | – | 0650-0755 Magnum 53226 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 49-1/2" | 0650-0392 Magnum 332110 | 0650-0766 Magnum 432110 | – | 0650-0769 Magnum 532110 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 51-1/2" | 0650-0394 Magnum 333410 | – | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 26-1/2" | DS-3426 Magnum 3426 | 0651-0402 Magnum 4426 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 28-1/2" | 0651-0001 Magnum 34262 | 0651-0864 Magnum 44262 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 30" | – | – | – | 0651-0419 Magnum 5425 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 30-3/4" | DS-3425 Magnum 3425 | 0651-0401 Magnum 4425 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 31-3/4" | – | – | 0651-0903 Magnum 7419 | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 32-3/4" | 0651-0197 Magnum 34252 | 0651-0862 Magnum 44252 | 0651-0909 Magnum 74252 | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 34-3/4" | 0651-0198 Magnum 34254 | 0651-0435 Magnum 44254 | – | 0651-0462 Magnum 54254 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 36-5/8" | – | – | 0651-0911 Magnum 74256 | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 36-3/4" | 0651-0199 Magnum 34256 | 0651-0436 Magnum 44256 | – | 0651-0463 Magnum 54256 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 37-3/4" | – | 0651-0430 Magnum 44196 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 38" | DS-34196 Magnum 34196 | – | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 38-3/4" | 0651-0859 Magnum 34258 | 0651-0863 Magnum 44258 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 39-1/2" | DS-3421 Magnum 3421 | 0651-0398 Magnum 4421 | – | 0651-0416 Magnum 5421 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 40-1/2" | 0651-0555 Magnum 342510 | 0651-0556 Magnum 442510 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 41-1/2" | 0651-0194 Magnum 34212 | – | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 42-1/2" | DS-3422 Magnum 3422 | 0651-0399 Magnum 4422 | – | 0651-0417 Magnum 5422 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 43-1/2" | 0651-0195 Magnum 34214 | 0651-0432 Magnum 44214 | – | 0651-0455 Magnum 54214 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 45-1/2" | DS-34216 Magnum 34216 | 0651-0433 Magnum 44216 | – | 0651-0456 Magnum 54216 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 47-1/2" | 0651-0196 Magnum 34218 | 0651-0434 Magnum 44218 | 0651-0908 Magnum 74218 | 0651-0457 Magnum 54218 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 48" | DS-34226 Magnum 34226 | – | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 48-1/2" | 0651-0003 Magnum 34219 | – | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 49-1/2" | 0651-0227 Magnum 342110 | 0651-0478 Magnum 442110 | – | 0651-0481 Magnum 542110 |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 49-5/8" | – | – | 0651-0918 Magnum 742110 | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 90° | 51-1/2" | 0651-0228 Magnum 342112 | – | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 32-1/2" | DS-3320 Magnum 3320 | 0650-0701 Magnum 4320 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 38" | DS-3316 Magnum 3316 | 0650-0705 Magnum 4316 | – | – |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 39-1/2" | 0650-0360 Magnum 3330 | 0650-0712 Magnum 4330 | – | 0650-0727 Magnum 5330 |
| Throttle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 41-3/4" | DS-3323 Magnum 3323 | 0650-0709 Magnum 4323 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 32-1/2" | DS-3420 Magnum 3420 | 0651-0397 Magnum 4420 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 38" | – | 0651-0395 Magnum 4416 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 41-3/4" | DS-3423 Magnum 3423 | 0651-0400 Magnum 4423 | – | – |
| Idle | Touring '96-'98 / Softail '96-'99 / Dyna '96-'98 70° | 46" | 0651-0006 Magnum 34168 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 90° threaded | 30" | DS-3302 Magnum 3302 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 90° threaded | 32-1/2" | DS-3309 Magnum 3309 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 90° threaded | 38" | DS-33096 Magnum 33096 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 90° threaded | 39-1/2" | DS-3311 Magnum 3311 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 90° threaded | 45-1/2" | DS-33116 Magnum 33116 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 90° threaded | 30" | DS-3402 Magnum 3402 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 90° threaded | 31-3/4" | DS-3409 Magnum 3409 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 90° threaded | 37-3/4" | 0651-0189 Magnum 34096 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 90° threaded | 39-1/2" | DS-3411 Magnum 3411 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 90° threaded | 45-1/2" | DS-34116 Magnum 34116 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 70° threaded | 32-1/2" | DS-3310 Magnum 3310 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 70° threaded | 38" | DS-3306 Magnum 3306 | – | – | – |
| Throttle | Touring / Dyna / Softail '90-'95 70° threaded | 44" | DS-33066 Magnum 33066 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 70° threaded | 32-1/2" | DS-3410 Magnum 3410 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 70° threaded | 38" | DS-3406 Magnum 3406 | – | – | – |
| Idle | Touring / Dyna / Softail '90-'95 70° threaded | 44" | DS-34066 Magnum 34066 | – | – | – |
| Throttle | FX/FL '81-'95 / Sportster '81-'85 45° threaded | 32-1/2" | DS-3301 Magnum 3301 | – | – | – |
| Throttle | FX/FL '81-'95 / Sportster '81-'85 45° threaded | 38" | DS-33016 Magnum 33016 | – | – | – |
| Idle | FX/FL '81-'95 / Sportster '81-'85 45° threaded | 32-1/2" | DS-3401 Magnum 3401 | – | – | – |
| Idle | FX/FL '81-'95 / Sportster '81-'85 45° threaded | 38" | DS-34016 Magnum 34016 | – | – | – |
| Throttle | FX/FL '81-'95 / Sportster '81-'85 70° threaded | 42-1/2" | DS-3307 Magnum 3307 | – | – | – |
| Idle | FX/FL '81-'95 / Sportster '81-'85 70° threaded | 42-1/2" | DS-3407 Magnum 3407 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 25-1/8" | – | – | 0651-0905 Magnum 7428 | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 38-7/8" | 0651-0010 Magnum 3428 | 0651-0404 Magnum 4428 | – | 0651-0422 Magnum 5428 |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 41-1/2" | 0651-0187 Magnum 3435 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 41-7/8" | 0651-0018 Magnum 34283 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 44" | 0651-0017 Magnum 3432 | – | – | 0651-0425 Magnum 5432 |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 44-7/8" | 0651-0011 Magnum 34286 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 46" | 0651-0200 Magnum 34322 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 46-7/8" | 0651-0881 Magnum 34288 | 0651-0883 Magnum 44288 | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 48" | 0651-0201 Magnum 34324 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 48-15/16" | 0651-0867 Magnum 342810 | 0651-0885 Magnum 442810 | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 49" | 0651-0202 Magnum 34326 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 50" | – | 0651-0442 Magnum 44326 | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 90° | 53-15/16" | 0651-0884 Magnum 343210 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 70° | 38-3/8" | 0651-0015 Magnum 3431 | 0651-0406 Magnum 4431 | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 70° | 41-1/2" | DS-3427 Magnum 3427 | – | – | – |
| Idle-Cruise | Touring '01-'07 w/ cruise 70° | 44-3/8" | 0651-0016 Magnum 34316 | – | – | – |
| Idle-Cruise | Stock only – Touring – 1996-1998 FLHTCUI 70° | 41-1/2" | DS-3427 Magnum 3427 | – | – | – |
| Idle-Cruise | Stock only – Touring – 1996 FLTCUI 70° | 41-1/2" | DS-3427 Magnum 3427 | – | – | – |
| Idle-Cruise | Stock only – Touring – 1998 FLTRI 70° | 41-1/2" | DS-3427 Magnum 3427 | – | – | – |
| Throttle | FX/FL '81-'95 / Sportster '81-'85 90° threaded | 30" | DS-3302 Magnum 3302 | – | – | – |
| Idle | FX/FL '81-'95 / Sportster '81-'85 90° threaded | 30" | DS-3402 Magnum 3402 | – | – | – |
