Description

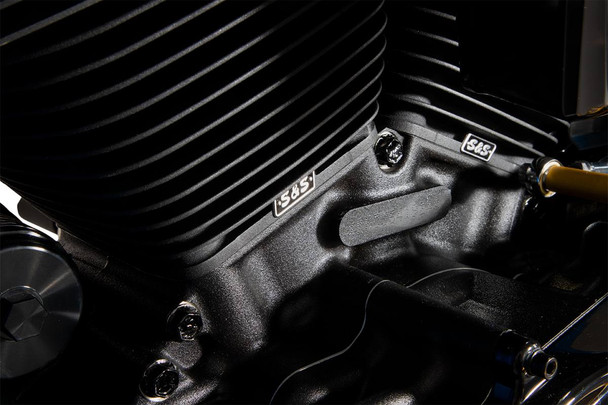

S&S Cycle - 310-1059A - 124" Power Package - Gear Drive - Non-Highlighted Fins - Black Pushrod Tubes - 107" M8
Features
- Made in the USA
- Big Bore Kit
- 107" to 124" Big bore kit
- Bolt on kit
- No case matching required
- Forged pistons
- 11:1 Compression ratio
- Oil Pump/Cam Plate
- Precision machined from billet aluminum
- Blue anodized finish
- Passage plugs removable for servicing
- Independent scavenge sections for flywheel cavity and cam chest
- Debris screens in both the scavenge pickups
- Magnet in cam chest to help to stop debris from entering oil pump
- Increased flow capacity on both feed and scavenge side
- Adjustable pressure relief valve is adjustable with unit installed in engine
- Pushrods
- Quikee pushrods
- Tappets
- S&S precision tappets
- Tappet Cuffs
- Hard anodized black coating
- Billet aluminum construction
- Stronger than stock material eliminates distortion
- Improve tappet stability in high lift and high rpm situations
- Cam
- S&S 550 cam-designed for big bore applications
- Valve Springs
- Work well with cams up to 0.605" lift
- High performance conical single wire spring
- S&S does not recommend compression ratios higher than 10:1 for Tri Glide® or other three wheel models (including conversions) due to extra loads caused by the lugging nature of these bikes. Detonation and subsequent engine damage may result
Specs
| Cam Drive Type | Gear |
| Color/Finish | Non-Highlighted Fins |
| Features | Black Pushrod Tubes |
| Riding Style | Street |
| Displacement | 124'' |
| Product Name | Performance Kit |
| Bore Size Imperial | 4.250'' |
| Model | Power Package |
| Style | Big Bore |
| Type | Engine |
| Cooling System | Oil Cooled |
| Color/Finish | Wrinkle Black |
| Compression Ratio Imperial | 11.0:1 |
| Units | Kit |
Fitment
| 2022-2023 | Harley-Davidson | Electra Glide Police FLHTPI |
| 2023 | Harley-Davidson | FLHRXS Road King Special |
| 2023 | Harley-Davidson | FLHX Street Glide |
| 2023 | Harley-Davidson | FLHXS Street Glide Special |
| 2017-2023 | Harley-Davidson | FLRT Freewheeler |
| 2023 | Harley-Davidson | FLTRX Road Glide |
| 2023 | Harley-Davidson | FLTRXS Road Glide Special |
| 2023 | Harley-Davidson | FXBR Breakout 117 |
| 2023 | Harley-Davidson | FXLRS Low Rider S 117 |
| 2023 | Harley-Davidson | FXLRST Low Rider ST 117 |
| 2017-2023 | Harley-Davidson | Road King Police FLHP |
