Description

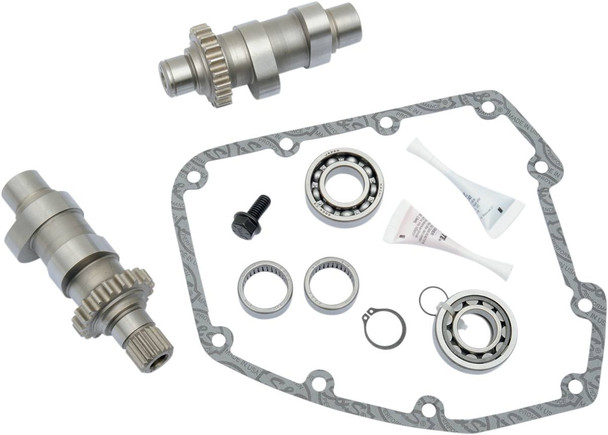

S&S Cycle - 330-0016 - Camshaft Kit - 509C Chain Drive - Twin Cam
Features
- Great low and mid-range torque
- Strongest from 1000-4500 RPM
- Bolt-in cams for 88 CID engines with stock compression ratios
- 180 psi cranking compression; no need for compression releases
- Lower lift allows them to be bolted into stock 96"-106" '06 engines with stock valve springs
- Cams for '00-'06 Twin Cam are for use with stock splined drive gears; for installation on '99 Twin Cam motors you must purchase splined outer drive socket; S&S recommends that Andrews 4340 steel drive sprocket to be used.
- Made in the USA
- Installer must check coil bind, valve to valve clearance and valve to piston clearance.
Specs
| Intake Lift at TDC Imperial | 0.174'' |
| Riding Style | Street |
| Intake Open Imperial | 18° |
| Intake Duration Imperial | 216° |
| Product Name | Cam Kit |
| Exhaust Lobe Centerline Imperial | 107.5° |
| Exhaust Open Imperial | 46° |
| Intake Close Imperial | 18° |
| Intake Lift Imperial | 0.509'' |
| Exhaust Lift Imperial | 0.509'' |
| Type | Chain |
| Application | Exhaust |
| Exhaust Duration Imperial | 237° |
| Application | Intake |
| Exhaust Lift at TDC Imperial | 0.140'' |
| Grind | 509 Series |
| Intake Lobe Centerline Imperial | 90° |
| Units | Kit |
| Exhaust Close Imperial | 11° |
Fitment
| 2005 | Harley-Davidson | 15th Anniversary Fat Boy FLSTF |
| 1999-2000 | Harley-Davidson | Dyna Convertible FXDS-CONV |
| 1999-2006 | Harley-Davidson | Electra Glide Classic EFI FLHTCI |
| 1999-2005 | Harley-Davidson | Electra Glide Classic FLHTC |
| 2003-2006 | Harley-Davidson | Electra Glide Standard EFI FLHTI |
| 1999-2006 | Harley-Davidson | Electra Glide Standard FLHT |
| 1999-2006 | Harley-Davidson | Electra Glide Ultra Classic EFI FLHTCUI |
| 1999 | Harley-Davidson | Electra Glide Ultra Classic FLHTCU |
| 2004-2005 | Harley-Davidson | Low Rider EFI FXDL |
| 1999-2005 | Harley-Davidson | Low Rider FXDL |
| 1999-2006 | Harley-Davidson | Road Glide EFI FLTR |
| 1999-2002 | Harley-Davidson | Road Glide FLTR |
| 1999-2006 | Harley-Davidson | Road King Classic EFI FLHRC |
| 2004-2006 | Harley-Davidson | Road King Custom EFI FLHRS |
| 2004-2006 | Harley-Davidson | Road King Custom FLHRS |
| 1999-2006 | Harley-Davidson | Road King EFI FLHR |
| 1999-2006 | Harley-Davidson | Road King FLHR |
| 2005-2006 | Harley-Davidson | Softail Deluxe EFI FLSTNI |
| 2005-2006 | Harley-Davidson | Softail Deluxe FLSTN |
| 2001-2006 | Harley-Davidson | Softail Deuce EFI FXSTDI |
| 2000-2006 | Harley-Davidson | Softail Deuce FXSTD |
| 2002-2006 | Harley-Davidson | Softail Fat Boy EFI FLSTFI |
| 2000-2006 | Harley-Davidson | Softail Fat Boy FLSTF |
| 2001-2006 | Harley-Davidson | Softail Heritage Classic EFI FLSTCI |
| 2000-2006 | Harley-Davidson | Softail Heritage Classic FLSTC |
| 2006 | Harley-Davidson | Softail Heritage EFI FLSTI |
| 2006 | Harley-Davidson | Softail Heritage FLST |
| 2001-2003 | Harley-Davidson | Softail Heritage Springer EFI FLSTSI |
| 2000-2003 | Harley-Davidson | Softail Heritage Springer FLSTS |
| 2001-2006 | Harley-Davidson | Softail Night Train EFI FXSTBI |
| 2000-2006 | Harley-Davidson | Softail Night Train FXSTB |
| 2005-2006 | Harley-Davidson | Softail Springer Classic EFI FLSTSCI |
| 2005-2006 | Harley-Davidson | Softail Springer Classic FLSTSC |
| 2001-2006 | Harley-Davidson | Softail Springer EFI FXSTSI |
| 2000-2006 | Harley-Davidson | Softail Springer FXSTS |
| 2001-2006 | Harley-Davidson | Softail Standard EFI FXSTI |
| 2000-2006 | Harley-Davidson | Softail Standard FXST |
| 2006 | Harley-Davidson | Street Glide EFI FLHX |
| 2006 | Harley-Davidson | Street Glide FLHX |
| 2005 | Harley-Davidson | Super Glide Custom EFI FXDCI |
| 2005 | Harley-Davidson | Super Glide Custom FXDC |
| 2004-2005 | Harley-Davidson | Super Glide EFI FXDI |
| 1999-2005 | Harley-Davidson | Super Glide FXD |
| 2004-2005 | Harley-Davidson | Super Glide Sport EFI FXDXI |
| 1999-2005 | Harley-Davidson | Super Glide Sport FXDX |
| 2001-2003 | Harley-Davidson | Super Glide T-Sport FXDXT |
| 2004-2005 | Harley-Davidson | Wide Glide EFI FXDWGI |
| 1999-2005 | Harley-Davidson | Wide Glide FXDWG |
