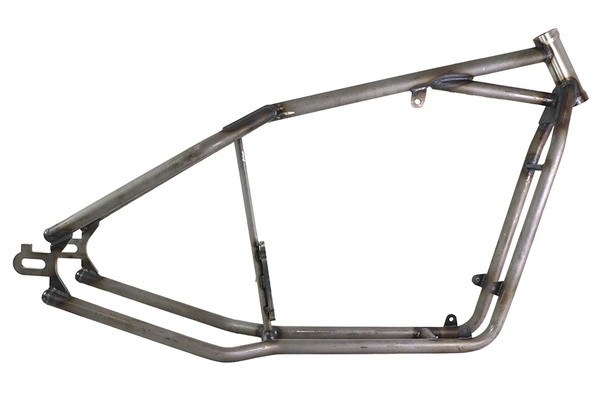

V-Twin - 51-0799 - D+D XL Rigid Frame Raw
Description
D+D XL raw rigid frame features a 1-1/4" thick wall, DOM steel tubing with 1-1/2" backbones, 30 rake and 0 stretch. This rigid frame is a basic starter frame.
Frame will require custom 3/4" rear axle and mid control mounts. Suggested to use with oil tank and bracket as noted, available seperately for purchase. Does not include forward control mounts. Addition tabs and brackets may be required as build progresses. Mounts for sissy bar, oil, tank, battery, kickstand and rear fender mounts should be considered in advance before paint and final assembly, available separately. Always pre-build first, dissemble then the actual final build! Use spacers which have 3/4" flats, to fit plates with 6/16" axle hole. Wheel adjuster blocks accept 3/8"-24 screws. *NOTE: Frame does not have a cross shaft provision for mechanical brakes, available separately as required. Frame can be set up for 1957-1985 type Ironheads.
Fits:
- XL 1986-2003
Additional Information
| UOM | 1 - EA | ||||||||
| Measurements |
Manufacturer | V-Twin | Origin | Imported | Tech Note | Suggested to use with #40-9008 XL Round Oil Tank Chrome Suggested to use with #40-9009 XL Round Oil Tank Raw Suggested to use wtih #31-1892 Oil Tank Mount Bracket Required to use with #51-0389 XL Brake Shaft Tube Suggested to use with #44-0763 9/16" Rear Axle Adapter Spacer Set. Suggested to use with #51-0515 Kickstand Frame Mount Universal. |
