Description

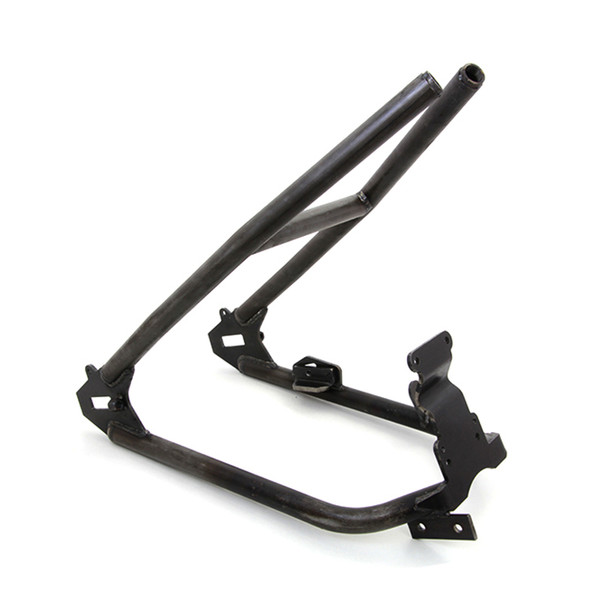

Weld on hardtail with bracket is for stock frames with disc brake. Constructed of 1-1/4" tubing which compliments the original tubing of the stock XL frames. The largest size tire this will take is 140. This hardtail accepts a 14-1/2" long axle with a 3/4" outer diameter and stock rear wheel. The axle plate is welded onto the frame. DIY hardtialing can be accomplished by qualified welder as rear motor mount plate can be bolted to engine assebmly by the (4) mount bolts. Battery box mount and lower fender brace must be fabricated and installed by welding. Welding should be performed by a skilled welding technician. Custom application for 1982-2003 XL. Order rear axle adjusters separately. Suggested to use with top mount oil tank.
Note:
- UPS may consider this part as packaged "oversize" for shipment, as compared to the actual weight, which will result in higher shipping costs
Fitment:
- XL 1982-2003
Installation Instructions:
Measurements:
- Top: 25-1/2"
- Bottom: 19-1/2"
- Outer Width: 11-5/8"
Other Notes:
- Inner Width: 11-1/4"
Tech Note:
- Suggested to use with #42-9917 or #42-9912 Chrome Battery Carrier Kit.
- Suggested to use #20-4004 1-1/8" Carlisle Panther Rear Belt 136 Tooth.
- Suggested to use #44-0148 Raw Rear Axle.
- Suggested to use #23-0587 Replica Chrome Rear Caliper with Bracket and Brake Pads.
- Suggested to use #51-0630 Frame Caliper Mount Set Left Side.
- Suggested to use #31-0418 Rear Exhaust Bracket Chrome.
- Suggested to use #37-0462 Chrome Steel Spacers.
- Suggested to use #37-0889 Chrome Axle Nut Kit Acorn Style.
- Suggested to use with #44-0545 Chrome Rear Axle Adjuster
