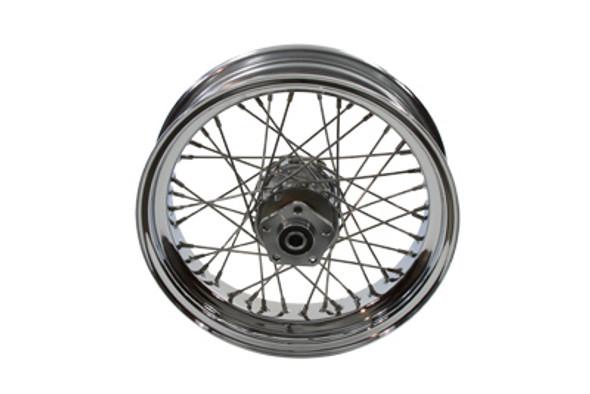

V-Twin - 52-0831 - Rear 16 inch x 4.00 inch Replica Spoke Wheel
Description
Replica 16" X 4.00" star hub type wheel kit includes a chrome hub, chrome drop center rim, chrome spokes, and rubber rim strip.
Wheel is assembled like stock with loose roller bearings. NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation. *NOTE: The valve stem hole is on the star side of the hub and measures 11/64" from the drum side flange.
Fits:
- WL 1936-1952 rear only
- FL 1941-1966 Front or Rear
- UL 1937-1948 Front or Rear
- EL 1936-1940 Front or Rear
Additional Information
| UOM | 1 - EA |
| Location | Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 760 |
| Replacement Items | 52-0223 - 16" X 4.00" Rim Rear Drop Center 45-0621 - Chrome 16" Spoke Set 45-0330 - Star Hub Wheel Assembly 45-0781 - Spoke 40 Piece Chrome Nipple Set |
| Tech Note | When looking at the star side of the wheel, the inner layer of spokes should point clockwise. Place straightedge across rim on brake side and measure the distance from straightedge to brake side spoke flange of hub. Measures 11/64" when rim is correctly centered. Suggested to use #46-0114 Side Valve Rubber Stem Tube. |
