Description

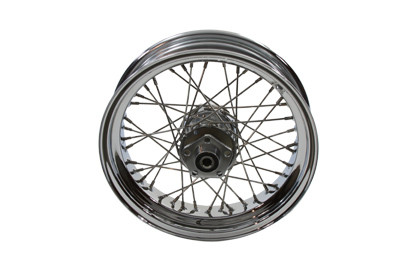

Rear wheel assembly features a 40 hole 16" x 4" chrome rim, 40 stainless spokes and a chrome rear hub with bearings installed. Wheel is laced and trued.
Accepts a 150-160 tire size. Deluxe rim is OE type with small center valve stem hole to accept metal stem. The hub outside to outside of the flange measures 6-5/4". The hub total width is 7-1/2". *NOTE: 32mm on the pulley side, valve stem side. 27mm offset on the disc side. **NOTE: All spokes on wheel need to be inspected and re-torqued after 500 miles of original installation.
Fits:
- FXRS 1986-1994
- XL 1986-1999
- FLST 1986-1996
- FXDG 1991-1996
- FXR 1986-1994
- FXSTC 1986-1996
- FXST 1986-1996
Additional Information
| UOM | 1 - EA |
| Location | Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 461 |
| Replacement Items | 52-0223 - 16" X 4.00" Rim Rear Drop Center 45-0409 - Polished Stainless Steel 16" Spoke Set |
| Tech Note | Rim width is measured by the distance between the rim flanges. |
