Description

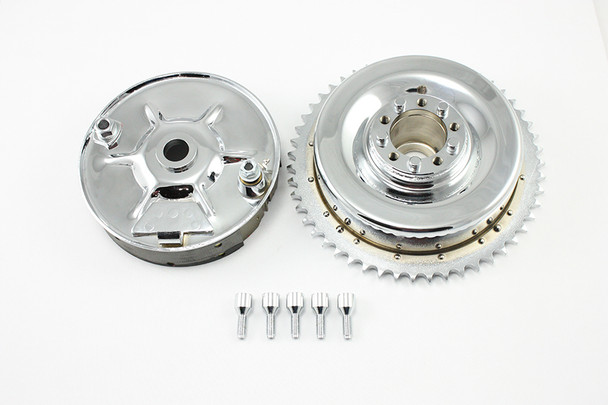

Kit features drawn steel brake drum, the backing plate with springs, fitted pre-arched shoes, cam pivot stud, and plate.
The drum has the 51 tooth sprocket riveted on with an original style dust ring. Lug bolts are included; however the axle and sleeve nut kit are not. Kit includes a replica mechanical rear brake shoe set with riveted linings installed. Some sanding may be required for exact fit. *NOTE: Drum is deep-drawn from steel plate (not cast).
Fits:
- UL 1937-1948
- EL 1936-1940
- FL 1947-1957
Additional Information
| UOM | 1 - KIT |
| Finish | Chrome |
| Location | Rear |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 577 |
| Replacement Items | 23-0429 - Mechanical Brake Drum Chrome 22-0745 - Rear Mechanical Brake Backing Plate Kit Chrome 23-0440 - Brake Drum Wheel Lug Set Chrome |
