Description

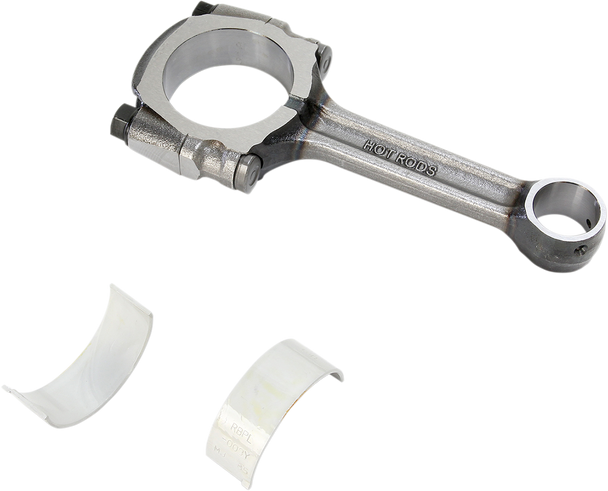

Hot Rods - 09230336 - Connecting Rod Kit - Kawasaki | Suzuki
Features
- Certified 8620 AISI steel provides superior strength
- Crankpins are manufactured from hot-rolled ASTM 4115 and case hardened to level of 58-62Rc
- Features the latest in caged needle roller bearing designs for high rpm longevity
- Uniquely designed big end uses strategically located side scalloping and vent slots to minimize bearing race distortion at high rpm
- Small ends are double drilled to supply extra lubrication and cooling to the wrist pin bearing, which is especially important when the piston crown is close to the wrist pin bearing
- Shot-peened to eliminate surface stress risers and to smoothly blend together the rod forging's radiuses
- Double honing produces an ultra-round bearing surface for reliability at high rpm
- Most rod assemblies are sold complete with rod, crank pin, crank pin bearing, top-end bearing and silver-coated bronze phosphor thrust washers
- Compatible with Hot Rods and OE crankshafts
- Made in the USA
- Replacement Part for OEM Number(s):132511143
Specs
| Units | Kit |
| Displacement | 750 cc |
| Displacement | 800 cc |
| Material | 8620 Steel |
| Engine Type | 4-Cycle |
| Riding Style | UTV |
| Displacement | 700 cc |
| Product Name | Connecting Rod Kit |
| Riding Style | ATV |
Fitment
| 2009-2013 | Kawasaki | KRF750 Teryx FI 4x4 |
| 2012 | Kawasaki | KRT750 Teryx4 4x4 |
| 2012-2013 | Kawasaki | KRT750 Teryx4 4x4 EPS |
| 2012-2023 | Kawasaki | KVF750 Brute Force 4x4i EPS |
| 2014-2021 | Kawasaki | KRT800 Teryx4 |
| 2015-2021 | Kawasaki | KRF800 Teryx |
| 2005-2021 | Kawasaki | KVF750 Brute Force 4x4i |
| 2008-2013 | Kawasaki | KRF750 Teryx FI 4x4 LE |
| 2024 | Kawasaki | KVF750 Brute Force 750 EPS |
| 2021 | Kawasaki | KRF800 Teryx LE |
| 2008 | Kawasaki | KRF750 Teryx 4x4 |
| 2024 | Kawasaki | KVF750 Brute Force 750 EPS LE |
| 2004-2009 | Kawasaki | KSV 700 KFX V-Force |
| 2024 | Kawasaki | KVF 750 Brute Force EPS Camo 4x4i |
| 2021 | Kawasaki | KRT800 Teryx4 LE |
| 2022-2023 | Kawasaki | KVF750 Brute Force 4x4i EPS Camo |
| 2014 | Kawasaki | KRF 800 Teryx |
| 2013 | Kawasaki | KRT 750 Teryx4 4x4 |
| 2004-2006 | Kawasaki | KVF700 Prairie 4x4 |
| 2004-2005 | Suzuki | LT-V700F Twin Peaks 700 4x4 |
