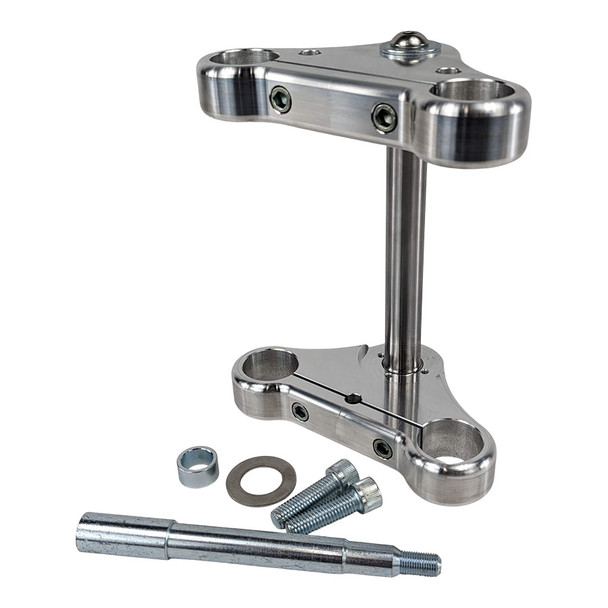

TC Bros Extra-Narrow Triple Trees — 1988-2003 39mm Narrowglide
Fits: 1988-2003 Harley-Davidson 39mm narrowglide forks with 3/4" axle (Sportster, Dyna and custom builds).
TC Bros extra-narrow trees turn a set of factory 39mm Harley forks into a skinny chopper front end. The legs end up over 1-3/8" closer together than a stock narrowglide, and the matching narrow axle and spacer are in the box for a spool hub wheel. A clean finishing touch on a Knuck-to-Sportster build.
Features
- CNC-machined from 1-1/4" thick 6061-T6 billet aluminum
- Fork tubes at 5.595" center-to-center — over 1-3/8" narrower than stock
- Keeps standard 3-1/2" H-D riser spacing
- 1" steering stem machined to fit the factory neck
- Zinc-plated 3/4" narrow axle and spacer included, sized for Moto Iron 115-0028 / 115-0073 spool hubs
- About 3-3/4" between sliders for tire clearance
- Lower tree has a headlight mount hole for most bottom-mount headlights
- Instructions and hardware included, made in the USA
Note: Uses internal fork stops (Pro 1 recommended); external stops require fabrication.
TC Bros part 113-0129
Specs
| Brand | TC Bros |
| Part Number | 113-0129 |
| Material | 6061-T6 billet, 1-1/4" thick |
| Fork Spacing | 5.595" center-to-center |
| Fork Size | 39mm |
| Axle | 3/4" narrow, included |
| Made In | USA |
| Fits | 1988-2003 Harley-Davidson 39mm narrowglide forks with 3/4" axle (Sportster, Dyna and custom builds). |
