Description

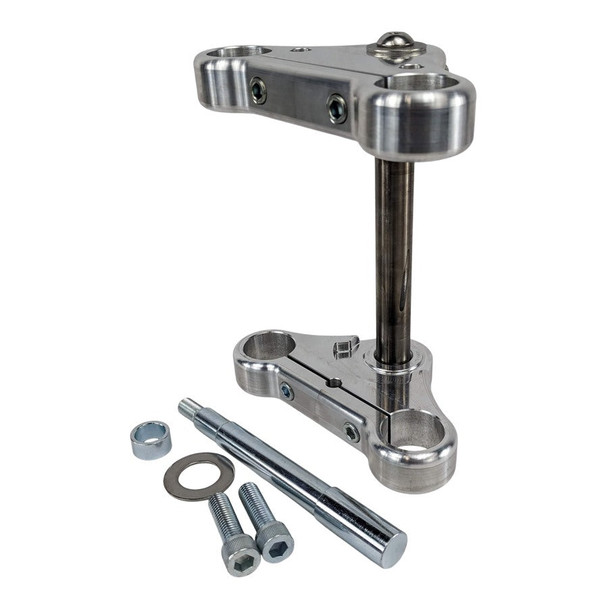

TC Bros Extra-Narrow Triple Trees — 2004-2007 Sportster
Fits: 2004-2007 Harley-Davidson Sportster with factory 39mm forks.
TC Bros extra-narrow trees turn a set of factory 39mm Harley forks into a skinny chopper front end. The legs end up over 1-3/8" closer together than a stock narrowglide, and the matching narrow axle and spacer are in the box for a spool hub wheel. A clean finishing touch on a 2004-2007 Sportster build.
Features
- CNC-machined from 1-1/4" thick 6061-T6 billet aluminum
- Fork tubes at 5.595" center-to-center — over 1-3/8" narrower than stock
- Keeps standard 3-1/2" H-D riser spacing
- 1" steering stem machined to fit the factory neck
- Zinc-plated 3/4" narrow axle and spacer included, sized for Moto Iron 115-0028 / 115-0073 spool hubs
- About 3-3/4" between sliders for tire clearance
- Lower tree has a headlight mount hole for most bottom-mount headlights
- Instructions and hardware included, made in the USA
TC Bros part 113-0131
Specs
| Brand | TC Bros |
| Part Number | 113-0131 |
| Material | 6061-T6 billet, 1-1/4" thick |
| Fork Spacing | 5.595" center-to-center |
| Fork Size | 39mm |
| Axle | 3/4" narrow, included |
| Made In | USA |
| Fits | 2004-2007 Harley-Davidson Sportster with factory 39mm forks. |
