Description

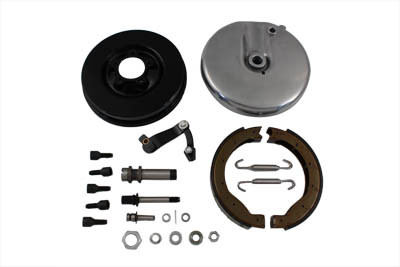

Kit includes brake shoes, springs, polished backing plate, black drum, axle sleeve, nuts, cam with lever and mount stud for left side brake.
NOTE: Pivot stud hole is oversize to allow 7/16" stud with locking washer, locking face toward backing plate, to be "set" when adjusting brake shoes.
Fits:
- FL 1949-1966
Additional Information
| UOM | 1 - KIT |
| Finish | Black |
| Location | Front |
| Manufacturer | V-Twin |
| Origin | Imported |
| 2025 Catalog Pages | 595 |
| Replacement Items | 24-0146 - Brake Cam Lever Left 23-0515 - Replica Front Brake Shoe Set 37-8675 - Replica Brake Drum Lug Screw Set Parkerized 23-1759 - Brake Backing Plate Cam Lever Stud |
| Tech Note | Suggested to use with #48-0835 Factory Service Manual for 1958-1969 FL. Suggested to use wtih #24-0127 Backing Plate Pivot Stud with Washer. Suggested to use wtih #24-0128 Backing Plate Locating Washer for Pivot Stud. |
