V-Twin - 50-1661 - Panhead Luggage Rack
Description

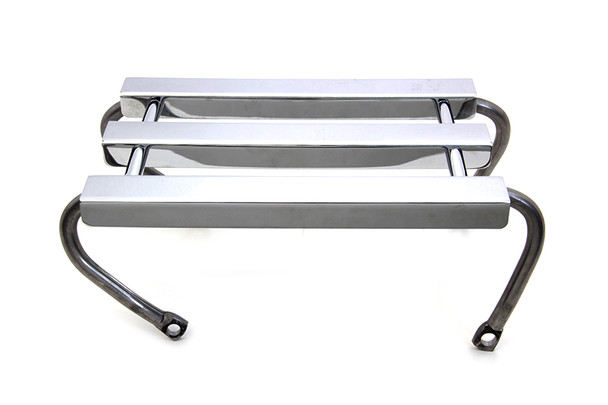

Replica Panhead luggage rack feature the 3 channel design.
Replica luggage rack replaces OEM #53403-52. Requires OEM #53457-52, Panhead luggage rack stud nuts, for installation. The fender must first be drilled for installation. Luggage rack fits on 1949-1957 FL Panhead models with smooth rear fenders, however can be retro fitted to other fenders with that share the same width. The front to back length at its widest width measures 9-5/8" and the widest width measures 8-1/8". *NOTE: Muse order hardware separately. *NOTE: This will need modification to fit over chrome saddlebag mount plates. **HINT: Loosen connector rods between the bars, mount to struts, then re-tighten connector rod nuts. (The rods go thru the 3 bars.)
Fits:
- EL 1948-1952
- FL 1948-1957
Additional Information
| OEM No. | 53403-52 | |||||||||
| UOM | 1 - EA | |||||||||
| Measurements |
Manufacturer | Wyatt Gatling | Origin | Imported | 2025 Catalog Pages | 644 | Tech Note | Required to use with #2591-12 Luggage Rack Mount Kit to mount to rigid fenders. Required to use with #2592-12 Luggage Rack Mounting Kit. Related ProductsRelated Products  V-Twin - 50-0246 - Luggage Rack ChromeWyatt Gatling
$37.27

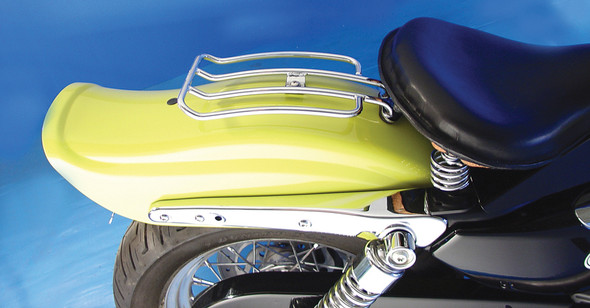

V-Twin - 50-0246 - Luggage Rack ChromeDescriptionLuggage rack to be used with solo seat only on sportster models. Will not fit with two up type seats.Rack is designed for loads of 10 pounds or less...
  V-Twin - 50-0588 - Tapered Luggage RackWyatt Gatling
$85.68
V-Twin - 50-0588 - Tapered Luggage RackDescriptionLuggage rack tapered, can be used with detachable or rigid mount side plates on models listed.The inside width bewteen the mount brackets is 7-1/8"...
 V-Twin - 50-0239 - Chrome Luggage RackWyatt Gatling
MSRP:
$74.88
$74.13
V-Twin - 50-0239 - Chrome Luggage RackDescriptionChrome luggage rack has mounts which are 7" center to center.Use with stock solo seat. Rack is designed for loads of 10 pounds or less. Fits:XL...
  V-Twin - 50-0589 - Bolt On Luggage RackWyatt Gatling
$112.09

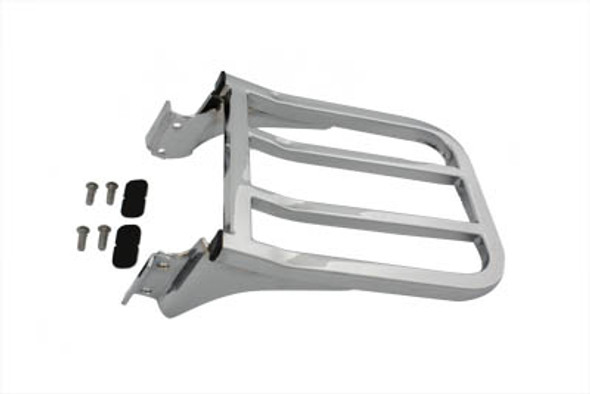

V-Twin - 50-0589 - Bolt On Luggage RackDescriptionChrome 4 bar luggage rack can be used with detachable or rigid mount sissy bar side plates. Includes four nuts and four bolts.The outside width of...
