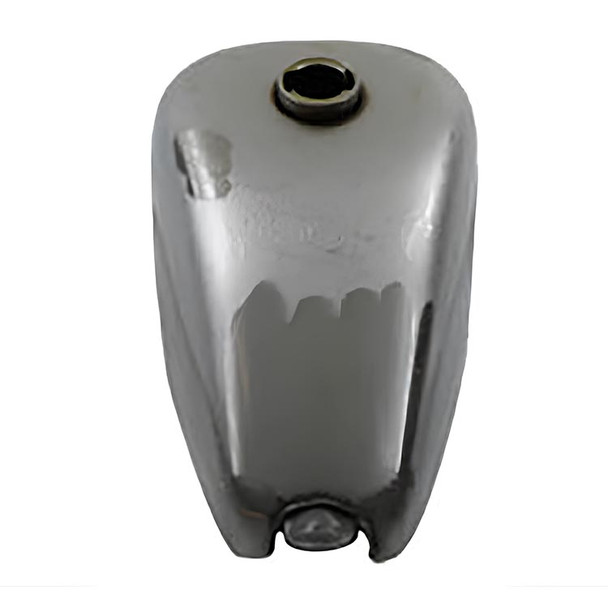

V-Twin - Chopper 2.5 Gallon Gas Tank

V-Twin Chopper 2.5 Gallon Gas Tank

The V-Twin Chopper Style Gas tank has a right side petcock location, and a fuel capacity of 2.5 gallons. The tank is universal with front and rear mounting tabs. The tank uses a 3/8" National Pipe Thread style petcock, pre-1975.

• Check the tank for flaws and fit before painting.
• Do not grind or sand the seams or joints.
• Clean the inside of the tank.
• It is suggested to pressure test and use a tank sealer kit to clean, condition, and seal to help stop leaks and prevent corrosion.
• Check the petcock opening, making sure the petcock can be easily installed.
• The petcock fitting should be masked or plugged during painting for easy installation of the petcock.
• Tank accepts Bayonet vented style gas caps.
• The tank has undrilled tab front and rear for surface mounting on top frame tube.

Fits:
Custom application

Measurements:

• Top length is 17”
• Bottom length is 16”.
• Rear width is 4 1/2”
• Front width is 9”
• Rear height is 1 3/4”
• Front height is 7 9/16”
• Tunnel height is 1 1/2 front and rear
• Tunnel length is 15 1/4" without tabs and 17 5/8" with tabs.
