Description

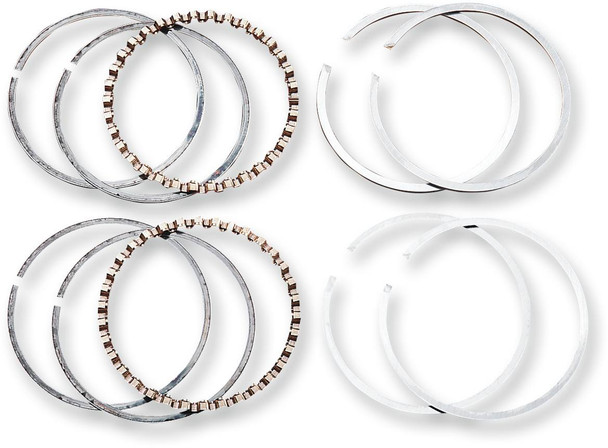

Hastings - 2M6198005 - Piston Rings - 3.000" +0.005 - 883 cc XL Evolution
Features
- Includes top compression rings, second compression rings, and oil control rings
- Top Compression Rings are Barrel Face
- Helps in the the heat transfer process between the piston and cylinder wall
- Controls combustion chamber gases allowing the piston to transfer the energy of the expanding combustion gases, to the crankshaft
- Second Compression Ring are Napier
- Reverse twist ring along with a taper-machined ring face duplicates the OD bottom side scraping edge of a positive twist torsional ring
- Promotes side sealing that prevents oil from being forced under and behind the ring resulting in better oil economy
- Oil Control Rings are Three Piece Flex Vent
- Three-piece design allows rails to be manufactured with a small cross sectional area for better conformability to bore
- Provides uniform pressure through four steel rails and two expanders assuring positive oil control
- Made in the USA
- Includes enough rings for two pistons (unless noted).
- Two rings per groove, except for the rails that will be two rail rings per one expander ring.
Specs
Bore Oversize - Imperial | +0.005'' |
Bore - Oversize | +0,005'' |
Riding Style | Street |
Product Name | Piston Ring Set |
Ring Material | Moly Coated |
Bore Size Imperial | 3.000'' |
Style | Replacement |
Units | Set |
Fitment
1999-2003 | Harley-Davidson | 883 Custom XLC |
1986-1995 | Harley-Davidson | 883 Deluxe XLH |
1987-2003 | Harley-Davidson | 883 Hugger XLH |
2002-2003 | Harley-Davidson | 883 Roadster XLR |
1986-2003 | Harley-Davidson | Sportster 883 XLH |
